Product Specifications
- Manufacturer
- PIE Practical Instrument Electronics
- Model Number
- 311 / 311Plus
- Product Type
- Automated Universal RTD Calibrator
- RTD Detection
- Automatic 2, 3, or 4 wire detection
- Accuracy
- ±0.015% reading + 0.05Ω
- Output Stepping
- 2, 3, 5, 11, 21 steps; step time 5-60 seconds
- 311Plus Additional
- Milliamp channel (source/read 0-24mA, current leakage test)
- Documents
- Product Manual, Product Specs (2 Files)
Product Description

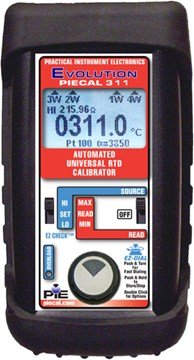

The PIE 311 / 311Plus automated universal RTD calibrator automatically detects 2, 3, or 4 wire RTDs. It can be used to calibrate and measure all RTD instruments and sensors, automatically indicating connections on the display to simplify hookups.
It is available as a single channel RTD (PIE 311) or double channel milliamp and RTD calibrator (PIE 311Plus). Both models are compatible with any smart transmitter, PLC, DCS, or multichannel recorder.
The PIE 311 / 311Plus features automatic output stepping for fast calibration. Choose between 2, 3, 5, 11 and 21 steps to automatically increment the output in 100, 50, 25, 10 or 5% of span. Then select the step time to match your system from 5, 6, 7, 8, 10, 15, 20, 25, 30 and 60 seconds.
