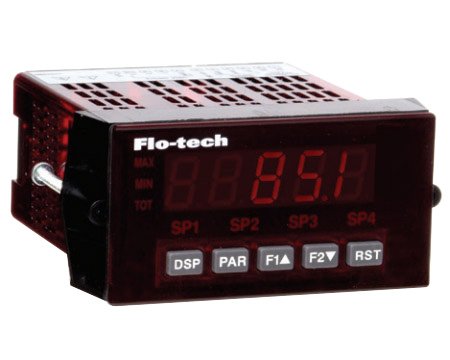

The Flo-tech F6700 / F6750 series digital display with integrated signal processor accepts a 4 to 20mA signal from Flo-tech's Activa sensor array as well as any other 4 to 20mA or 0 to 10VDC source. These 5-digit displays can be scaled to most engineering units and are easily programmed using the front panel buttons or available programming software. To meet your specific requirements, each display accepts up to three optional plug-in cards. One card for each of the following function types can be installed in each display: Analog Outputs – A linear DC output signal card will be set up to provide either a 4 to 20mA, 0 to 20mA, or 0 to 10VDC signals and can be scaled independent of the input range. Communications – Optional plug-in cards to facilitate digital communications include: RS232, RS485, Modbus, Profibus, and DeviceNet. Setpoint Alarms – Select from dual FORM-C relays (5 Amp), quad FORM-A relays (3 Amp) or either sinking or sourcing quad open collector logic outputs.

The analog output and communication cards will be installed by the factory at time of order, or they may be installed by the customer at a later date. The setpoint alarm cards are available for customer installation and setup only.

Applications: Remote flow meter monitoring, totalizing, alarm processing, process control.
