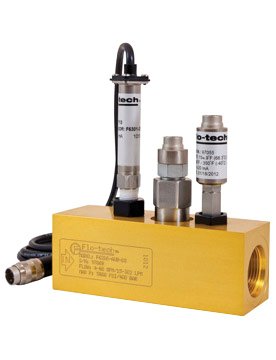

The Activa Sensor Array provides flow, temperature, and pressure signals in a compact unit that requires only one hydraulic line break . Each sensor transmits an output signal that is easily integrated with PCs, PLCs, recorders, or panel displays. Signals can also be transmitted to Flo-tech's F6700/F6750 Series digital displays .

Typical applications include fluid characteristic measurement on test stands, stationary hydraulic system monitoring, feedback for hydraulic system control, advance warning of impending component failure, and mobile hydraulic system diagnosis .

The sensor uses turbine flow measurement with an IFC converter providing 4-20mA or 0-5VDC flow rate output. Temperature and pressure also have 4-20mA outputs. It is available with SAE or BSPP ports and can handle pressures up to 5800 psi (400 bar) and temperatures up to 300°F (150°C). Flow accuracy is ±1% of reading @ 32 cSt with ±0.2% repeatability .
