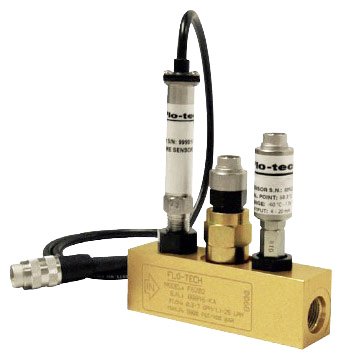

The Flo-tech Ultima sensor array provides flow, temperature, and pressure signals in a compact unit that requires only one hydraulic line break. The magnetic pick-up generates a frequency output for flow rate measurement while the pressure and temperature sensors provide 4 to 20mA output signals.

The flow signals can be transmitted to Flo-tech's F6600/F6650 series, and the temperature and pressure signals can be transmitted to the F6700/F6750 series digital displays or any other instruments that accept a frequency or 4 to 20mA signal. The sensor array is available in four flow ranges with pressures up to 5800 psi (400 bar) and temperatures up to 300°F (150°C). Flow accuracy is ±1% of full scale with ±0.2% repeatability.

Typical applications include fluid characteristic measurement on test stands, stationary hydraulic system monitoring, feedback for hydraulic system control, advance warning of impending component failure, and mobile hydraulics system diagnosis. Port options include SAE or BSPP connections for compatibility with various hydraulic systems.
