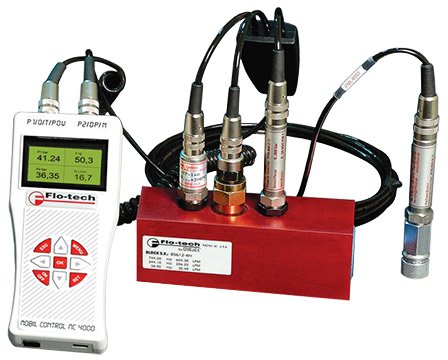

The Flo-tech MC4000 hydraulic system analyzer is a handheld instrument that combines a turbine flow meter with inputs for two pressure sensors, one temperature sensor, and one active pick-up for RPM measurements. The versatility of the MC4000 makes it the ideal instrument for fast diagnostic troubleshooting of all types of mobile or stationary hydraulic systems and components.

The MC4000 is available for flow ranges from 0.4 to 160gpm; optional pressure sensors from 870 to 5800 psi; and a temperature sensor from -4 to 300°F. Hydraulic horsepower is automatically calculated from the measured pressure and the flow. Four sensors can be connected at the same time and the measurements displayed in four windows of the LCD display in preselected process units according to US or DIN norms. All parameters can be set using the keys on the front panel.

The Flo-tech MC4000 includes a data logger mode in which measurement results are stored in an internal 2.5MB memory space. Each stored measurement also contains the day, date, and time derived from an internal real-time clock. Stored measurements are available at the meter's USB data port and can be uploaded to a Windows PC using the MC4CON software utility. The MC4CON program permits bi-directional communication for uploading records to the PC and downloading commands from the PC to MC4000.
