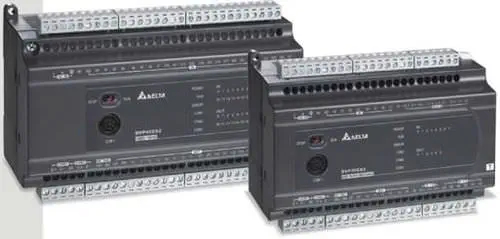

The Delta DVP-ES2/EX2 series is an economical and highly functional compact PLC designed for basic sequential control applications. Building upon the success of the DVP-ES series, the ES2/EX2 series offers enhanced performance, larger program capacity, and a wealth of built-in features, making it an ideal choice for a wide range of industrial automation tasks. The series includes the standard ES2 models and the EX2 models, which integrate analog I/O for mixed-signal control.

Performance and Capacity

At the heart of the DVP-ES2/EX2 series is a high-speed processor capable of executing basic instructions in as little as 0.35 μs. This ensures rapid response times for time-critical applications. The controller provides a substantial program capacity of 16k steps, allowing for complex control logic and extensive use of function blocks. Additionally, it features 10k words of data registers, providing ample space for data storage and manipulation. The DVP-ES2/EX2 also supports password protection for subroutines and user identification, safeguarding valuable intellectual property.

High-Speed I/O and Motion Control

The DVP-ES2/EX2 series excels in applications requiring high-speed counting and positioning. It is equipped with 8 high-speed input points, with 2 points capable of 100kHz and 6 points of 10kHz, supporting U/D, U/D Dir, and A/B counting modes. For motion control, it offers 4 independent high-speed pulse outputs: Y0 and Y2 support up to 100kHz, while Y1 and Y3 support up to 10kHz. New motion control instructions, including closed-loop control, alignment mark, shield, immediate variable speed, and S-curve acceleration/deceleration, empower precise and flexible motion profiles.

Communication and Analog Integration

Communication flexibility is a key strength of the DVP-ES2/EX2 series. It features three built-in communication ports: one RS-232 and two RS-485 ports. All three ports can operate independently and support the MODBUS ASCII/RTU protocol in both master and slave modes, enabling seamless integration with HMIs, SCADA systems, and other industrial devices. The DVP-EX2 models further enhance this capability with built-in 12-bit analog I/O (4 analog inputs and 2 analog outputs). Both ES2 and EX2 models can be expanded with 14-bit analog and temperature modules for more demanding process control applications. The series also includes handy instructions for controlling Delta's AC motor drives, simplifying drive integration.

Reliability and Environmental Adaptability

Designed for harsh industrial environments, the DVP-ES2/EX2 series operates reliably across a wide temperature range of -20°C to +55°C and is rated to IP20 for protection against solid objects. The system is built to withstand vibration (1g, IEC 60068-2-6), shock (15g, IEC 60068-2-27), and electromagnetic interference, meeting rigorous international standards including IEC 61131-2, UL, and CE certifications. Its robust design and fanless operation ensure a long service life and minimal maintenance.

Applications

The Delta DVP-ES2/EX2 series is ideally suited for a wide range of industrial automation applications, including:

• HVAC systems and building automation
• Plastic injection molding machines
• Packaging machinery and material handling
• Precise textile machinery
• Logistic systems and warehouse management
• PV solar tracking systems (with exclusive instructions)
