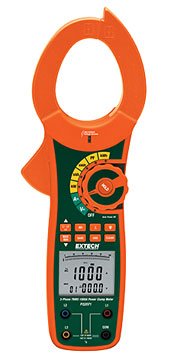

The Extech PQ2071 Clamp Meter operates as a True RMS Clamp Meter, Power Meter, Multimeter, and AC Voltage Detector. Featuring a CAT IV 600V safety rating, the PQ2071 measures AC Current, Voltage, Frequency and full power parameters including True Power, Apparent Power, Reactive Power and Active Power. A USB interface is provided for PC connection to support data logging with included software.

Core applications for the PQ2071 include:

• AC Power Quality evaluation
• Motor/Generator installation and repair
• Energy Audits

Features

• Core measuring ranges:
  • True Power (kW) up to 750kW
  • Apparent Power (kVA) up to 750kVA
  • Reactive Power (kVAR) up to 750kVAR
  • Active Power (kWh) up to 9999kWh
  • Power Factor 0.3 to 1
  • Phase Angle (φ) -180 to 180°
  • Frequency measurement up to 200Hz
• 2.16" (55mm) clamp jaw opening
• Large dual backlit LCD display (9999 count) with bargraph
• Manually store/recall up to 99 data sets
• Data Hold, Max/Min, and Auto power off functions
• USB interface for PC data logging with included software
• CAT IV 600V safety rated for industrial and commercial electrical work
