When does a design outgrow a 45K logic cell FPGA but not need the 150K monsters? That gap between “mid‑range” and “high‑density” is exactly where the XC6SLX75-3FGG484C lives. With 74,637 logic cells, 3.1 Mb of block RAM, and 280 user I/Os, it handles complex state machines, packet processing, or video pipelines without forcing you into a larger, more expensive package.

What the -3 Speed Grade Actually Buys You

The Spartan-6 LX family offers three speed grades: -1 (lowest power), -2 (balanced), and -3 (highest performance). This -3 part runs at up to 862 MHz internal clock, which is about 30% faster than the -2 grade. That extra headroom matters for high‑definition video timing, high‑speed memory controllers (DDR3‑800), or any design where timing closure is tight. The trade‑off? Slightly higher dynamic power, but for many high‑volume applications, the performance gain justifies the difference.

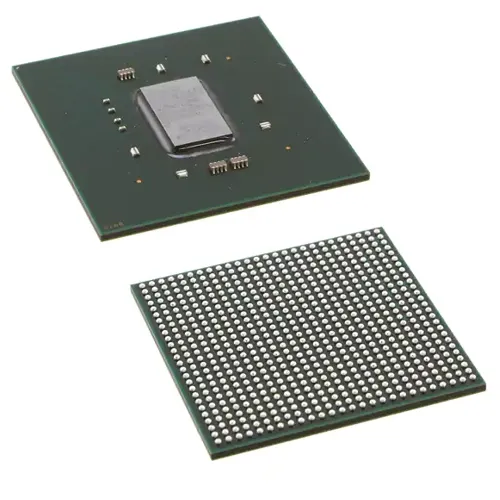

Package Choice: 484‑FBGA (23×23 mm)

The 484‑pin FBGA package (1.0 mm pitch) gives you 280 I/Os — not the maximum for this logic density (the 676‑FBGA version offers 400 I/Os), but enough for most system interfaces. The 23×23 mm footprint is manageable on 6‑layer boards, and the 1.0 mm pitch allows for standard PCB manufacturing without micro‑via processes. If you need more I/O, choose the 676‑FBGA variant; if you need a smaller board, the 484‑CSGBA chip‑scale package is an option. This 484‑FBGA strikes a practical balance.

Where This Specific Part Shines

Consider industrial cameras that process 1080p video, network switches with multiple Gigabit Ethernet ports, or embedded controllers running a soft‑core processor (MicroBlaze) with significant peripheral logic. The 74K cells leave room for a 32‑bit RISC core, a few DMA channels, and dedicated hardware accelerators — all without pushing routing congestion to the breaking point. The 3.1 Mb of block RAM also means you can implement sizable FIFOs, line buffers, or lookup tables on‑chip, reducing off‑chip memory accesses.

If your design fits comfortably in a 45K cell device, stick with the smaller part. If you are constantly fighting to fit logic or running out of RAM, the XC6SLX75-3FGG484C gives you breathing room without over‑spec’ing.
