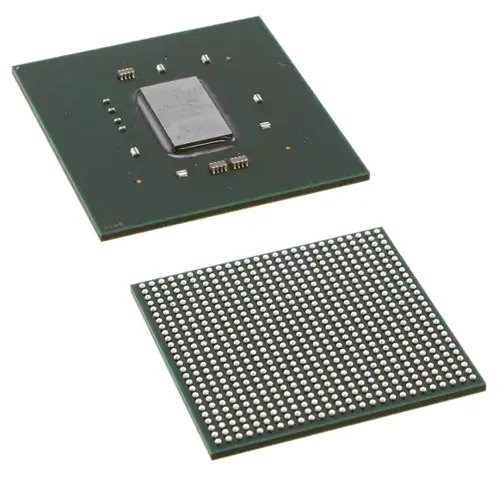

Most Artix-7 FPGAs are rated for 0°C to 85°C. The “I” at the end of this part number changes that. The XC7A100T-2FGG484I is characterized for –40°C to 100°C junction temperature — the industrial grade that keeps running when the heater fails in a frozen warehouse or the sun bakes a roadside telecom cabinet.

What 100K Logic Cells Actually Do

With 101,440 logic cells, this FPGA sits in the upper half of the Artix-7 lineup. It is not the biggest (the XC7A200T has nearly double), but it is the sweet spot for many real‑world applications. You can fit a 32‑bit MicroBlaze processor with cache, a full Ethernet MAC, a PCIe endpoint, several DSP filters, and still have room for custom glue logic. The 240 DSP slices handle FIR filters, FFTs, or matrix multiplication without burning general logic resources.

The 4.86 Mb of block RAM means you can implement deep FIFOs for streaming data, line buffers for video processing, or lookup tables for high‑speed protocol translation. If you need more memory, the integrated memory controller (Artix-7 includes hardened memory controllers) connects directly to DDR3 chips off‑chip.

The Speed Grade Question

The -2 speed grade is the mid‑range option in the Artix-7 family. It is faster than -1L (low power) and slower than -3 (top performance). For most industrial control and communications applications, -2 hits the right balance — fast enough for 10/100/1000 Ethernet, PCIe Gen2 x4, and 6.6 Gbps transceivers, without the power premium of -3.

The four 6.6 Gbps transceivers are key to this device’s versatility. They handle PCIe (Gen2 x4, 5 Gbps per lane), SGMII (Gigabit Ethernet over serial), or custom protocols like Aurora or Serial RapidIO. In industrial settings, those transceivers often connect to cameras (CoaXPress), high‑speed ADCs, or backplane links between boards.

Why the Package Matters

The 23×23 mm FBGA package with 285 I/Os is large enough to fan out to standard 0.8 mm pitch PCBs without micro‑vias, but compact enough to fit in most industrial enclosures. The 285 I/Os give you plenty of room for external memories, sensors, actuators, and debug interfaces. For comparison, the smaller 144‑pin TQFP version of the same logic density has only 97 I/Os — a huge limitation. If you need both high logic density and many I/Os, the FBGA package is the only choice.

For projects that never see extreme temperatures, the commercial “C” version is cheaper. But if your product ships to the real world — outdoor kiosks, factory floors, automotive test rigs, or remote infrastructure — the industrial “I” grade is not an upsell; it is a requirement.
