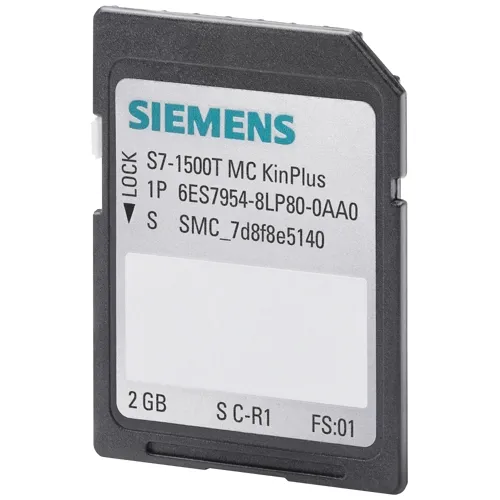

The 6ES7954-8LP80 is a 2 GB Flash memory card specifically validated for SIMATIC S7-1500 Technology CPUs — the S7-1518T, S7-1518TF, and S7-1507D TF. It is the required storage medium for deploying KinPlus, the high-end motion control firmware that turns a Technology CPU into a dedicated motion controller handling multi-axis interpolation, cam profiling, and kinematic transformations directly on the PLC.

Why does KinPlus require a specific memory card?

KinPlus firmware includes real-time motion control kernels, axis data structures, and cam tables that must load deterministically at power-up. The 6ES7954-8LP80 is qualified for the read timing and block-level access patterns that KinPlus demands. A standard 2 GB memory card such as the 6ES7954-8LP04 is electrically similar but has not been validated for KinPlus workloads — Siemens requires the 8LP80 part number for compliance. Using an unvalidated card with KinPlus may result in firmware load failures or non-compliance with machine safety validation.

Can I use this card in a standard S7-1500 CPU?

Physically, yes — it shares the same 24 × 32 × 2.1 mm form factor and 3.3V interface. But there is no reason to purchase the 8LP80 for a standard S7-1500. The 8LP80 is priced at a premium over the standard 6ES7954-8LP04 because of its KinPlus validation. For a non-Technology CPU, the 8LP04 delivers identical storage capacity at lower cost.

Frequently Asked Questions

Which CPUs support KinPlus with this card?

The S7-1518T, S7-1518TF, and S7-1507D TF. Standard S7-1500 CPUs (e.g. S7-1516, S7-1513) and S7-1200 CPUs do not support KinPlus regardless of which memory card is installed — the Technology CPU hardware is a prerequisite.

Does the 8LP80 work with SINAMICS drives?

Yes, but indirectly. KinPlus running on the Technology CPU handles the motion control and communicates with SINAMICS drives over PROFINET. The memory card stores the KinPlus firmware and motion programs — it does not interface with drives directly.
