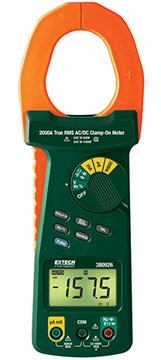

2000A True RMS AC/DC Clamp Meter with Full DMM | Extech 380926

1 / 5

Product Specifications

Manufacturer: Extech Instruments
Product Number: 380926
Type: 2000A True RMS AC/DC Clamp Meter
AC/DC Current (Clamp): 400.0A,2000A (0.1A) ±2% +5d
AC/DC Current (DMM): 400µA-400mA (0.1µA) ±2% +5d
AC Voltage: 4V-1000V (1mV) ±1.2% +5d
DC Voltage: 400mV-1000V (0.1mV) ±1% +2d
Resistance: 400Ω-40MΩ (0.1Ω) ±1% +5d
Capacitance: 50nF-50µF (10pF) ±3% +5d
Frequency: 5Hz-100kHz (0.001Hz) ±1% +5d
Jaw Opening: 50mm, fits 750MCM
Display: 5000-count backlit LCD
Safety Rating: CAT IV-600V

Product Description

The Extech 380926 is a CAT IV-600V True RMS AC/DC clamp meter combining a 2000A current clamp with a full-function autoranging DMM. Its 50mm (2") jaw accommodates cables up to 750MCM, with 0.1A resolution on the 2000A range.

As a DMM, it measures AC/DC voltage to 1000V (0.1mV DC resolution, 1mV AC resolution), resistance to 40MΩ (0.1Ω resolution), capacitance to 50µF (10pF resolution), frequency to 100kHz (0.001Hz resolution), duty cycle 1-99%, and low-level current via test leads from 400µA to 400mA with 0.1µA resolution.

The 5000-count backlit LCD with 2x/s sampling provides clear readings in dim areas. Features include DCA zero adjust for DC current, data hold, relative function, continuity beeper (<10Ω), diode test, auto/manual ranging, and built-in tilt stand. Includes test leads and 9V battery. CAT IV-600V, CAT III-1000V safety rated. 2-year warranty.
