Product Specifications
- Manufacturer
- Endress+Hauser
- Model Number
- Liquicap FMI52
- Type
- Capacitive Level Transmitter
- Measuring Range
- 0.42 to 10 m (1.38 to 33 ft)
- Process Temp
- -80 to 200°C
- Process Pressure
- Vacuum to 100 bar (1450 psi)
- Features
- Rope probe, independent of DC, overvoltage protection
- Documents
- Product Manual, Product Specs
Product Description
E+H Liquicap FMI52 Capacitive Level Transmitter is a reliable fully insulated rope probe for continuous level monitoring in liquids, particularly in small tanks, build-up forming media and extremely high temperatures - especially for large measuring ranges. The device is independent of the dielectric constant (DC) as of a liquid conductivity of 100µS/cm and allows measurement of various liquids without the need for recalibration.
Related Products
- Endress+Hauser FMI51 — -80-200°C, up to 100 bar, FDA materials
- Endress+Hauser FTI52 — -80-200°C, up to 100 bar, FDA materials
Endress+Hauser

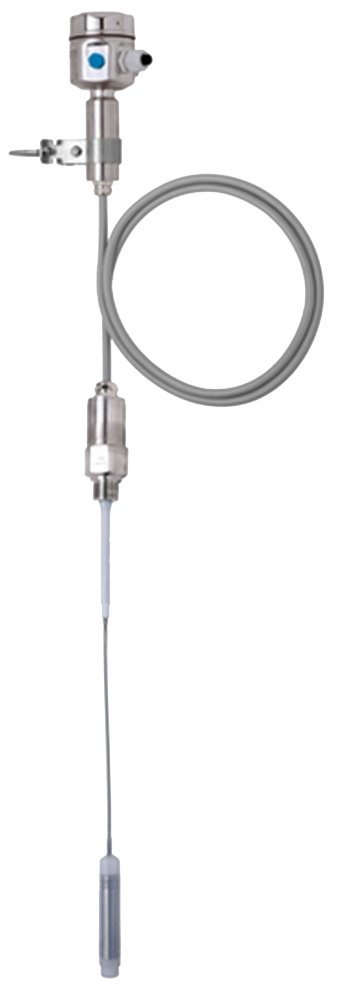

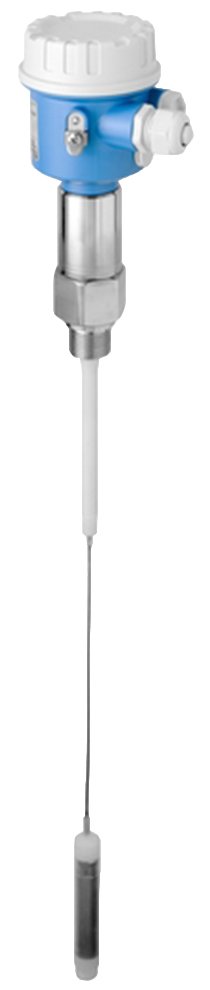

Capacitive Level Transmitter - Rope Probe | E+H Liquicap FMI52
10m range, -80-200°C, up to 100 bar, FDA materials
MPN/Series: FMI52
Product Specifications
- Manufacturer
- Endress+Hauser
- Model Number
- Liquicap FMI52
- Type
- Capacitive Level Transmitter
- Measuring Range
- 0.42 to 10 m (1.38 to 33 ft)
- Process Temp
- -80 to 200°C
- Process Pressure
- Vacuum to 100 bar (1450 psi)
- Features
- Rope probe, independent of DC, overvoltage protection
- Documents
- Product Manual, Product Specs
