When you are assembling a distribution board and there are empty slots that serve no purpose, the ABB SZ-BP1 exists to cover them. Not because it adds any electrical functionality, but because leaving those gaps open is rarely a good idea in a finished installation.

What It Does

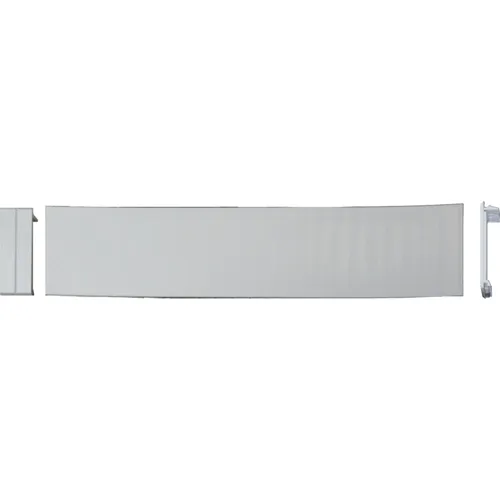

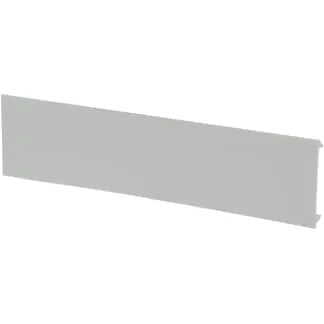

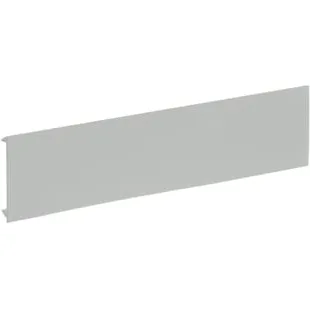

The SZ-BP1 is a blanking plate designed for ABB device covers, specifically those housing miniature circuit breakers and similar modular equipment. It snaps into place over unused cut-outs, converting an unfinished opening into a sealed, uniform surface. The result is a panel that looks complete and keeps dust, debris, and accidental contact out of spaces where no device is fitted.

Who This Is For
This accessory matters to panel builders, electrical contractors, and maintenance engineers who care about the finish and safety of their work. If you have ever looked at a distribution board with missing devices and thought "that doesn't look right," this product solves exactly that problem. It is equally relevant for new builds where future expansion slots need temporary covering, and for retrofit jobs where removed devices have left behind empty openings.

Dimensions That Fit
The plate spans 213 mm in width, which corresponds to 12 standard modules (each module being 17.5 mm). The cut-out height sits at 46 mm, matching the opening dimensions of ABB device covers. Cover thickness compatibility ranges from 1.0 mm to 3.0 mm, giving the plate flexibility across different enclosure types. Color is gray RAL 7035, the familiar light grey finish that blends in with most industrial and residential distribution equipment.

Material and Compliance
Made from high-quality engineering plastic, the SZ-BP1 is lightweight at approximately 30 grams and resists the corrosion that might trouble metal alternatives in damp environments. The plate carries RoHS compliance and is listed as SVHC-free (No SVHC as of January 2020). Country of origin is Germany, with customs tariff code 85389099.

Installation Reality
Fitting the plate is straightforward — it clips directly into the cover opening without tools. No screws, no brackets, no complicated alignment. Removal is equally simple when a device eventually needs to occupy that slot. This "fit and forget" design means the plate adds no labor overhead to a panel build, just a cleaner final appearance.

Where You Will Use It
Typical applications include residential consumer units where future circuits are planned, commercial distribution boards undergoing reconfiguration, industrial control panels with spare ways, and test benches where temporary blanking is needed. The plate is also useful in educational settings where training panels need to present a safe, finished face to students.

Family Context
The SZ-BP1 belongs to the broader ABB SZ-BP blanking plate family, which includes variants for different module counts and specific cover types. SZ-BP12G and SZ-BP12W are other members of this lineup, each tailored to particular enclosure configurations. The SZ-BP1 represents the 12-module option within the System pro M compact accessory ecosystem.

The Unspoken Value
Beyond the specifications, this product delivers something less tangible but equally important: professional presentation. A distribution board with blanked-off spare ways communicates attention to detail. It signals that someone took the time to finish the job properly, not just make it work. For contractors presenting work to clients or inspectors, that difference can matter.
