The ifm efector VVB Series Vibration Sensors are intelligent, industrial-grade condition monitoring devices designed to provide continuous machine protection. Available in both 1-axis and 3-axis configurations, these sensors integrate directly into existing control platforms via IO-Link, allowing for real-time monitoring of machine condition without the gaps associated with intermittent walk-around measurements .

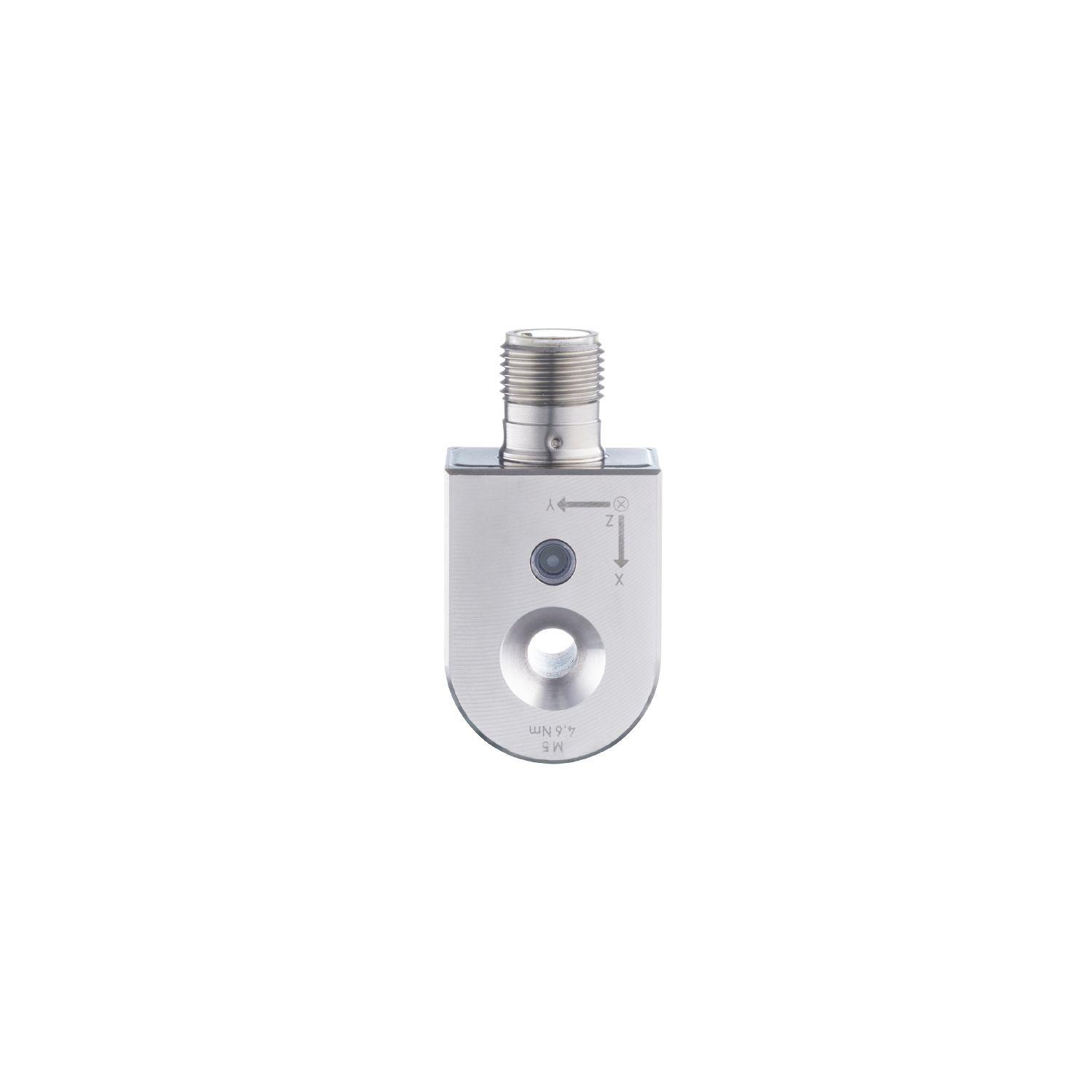

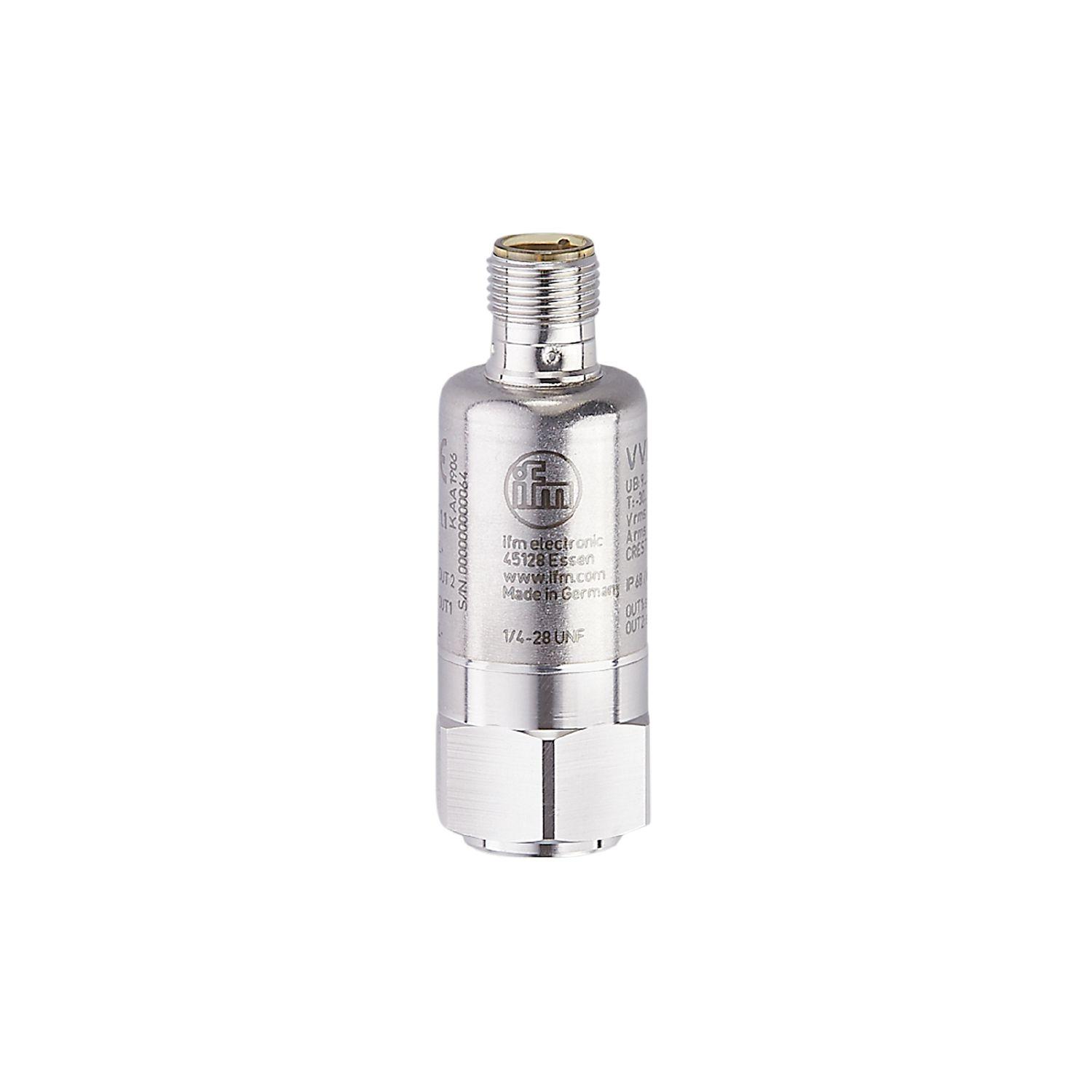

The 1-axis version (VVB) offers a wide frequency range of 2 to 10,000 Hz, making it suitable for detecting a broad spectrum of machine faults. The 3-axis version (VVB3) continuously detects vibration in three axes and additionally measures surface temperature, providing comprehensive insight into machine health across a frequency range of 2 to 5,600 Hz. With this capability, the sensor can reliably and early detect anomalies such as wear, bearing damage, insufficient lubrication, and cavitation .

Both models support multiple vibration measurement ranges (0-45 mm/s, 0-0.3 m/s, and 0-300 mm/s) to accommodate different machine types and severity levels. A key feature is the asynchronous transmission of raw data (BLOB), which enables detailed analysis of vibration signatures. User-friendly communication and parameterization are achieved via IO-Link, allowing for easy setup and seamless integration with PLCs and condition monitoring systems for continuous, permanent machine protection .
