Product Specifications
- Manufacturer
- QUADRIOS
- Part Number
- 2111O158
- Product Type
- THT LED

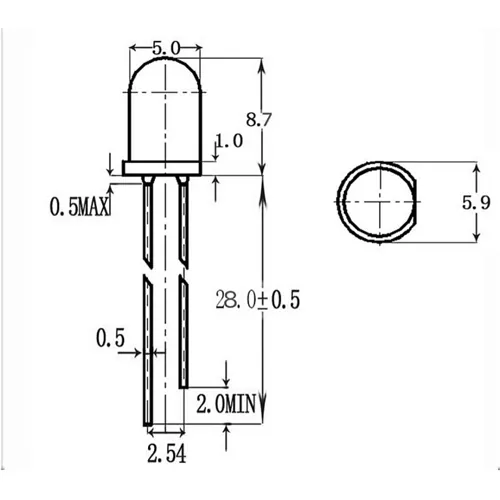

- Diameter
- 5 mm
- Color
- Green/Yellow
- Wavelength
- 569 nm
- Luminous Intensity
- 700 mcd
- Viewing Angle
- 30 °
- Forward Voltage
- 2 V
- Forward Current
- 20 mA
- Operating Temperature
- -25 °C to +80 °C
Product Description

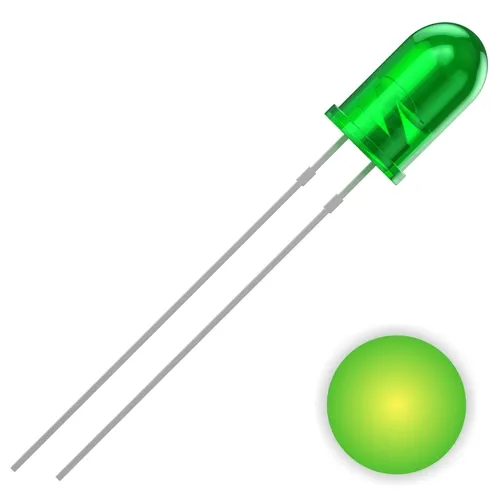

QUADRIOS 2111O158 is a 5mm green/yellow dual-color THT LED with a wavelength of 569nm and a luminous intensity of 700mcd. The 30° viewing angle provides a wide beam suitable for status indicators and mixed signal displays.
This LED operates at 2V with a forward current of 20mA. Always use a current-limiting resistor to prevent damage.
Ideal for control panels, instrumentation, and general-purpose indicator applications requiring dual-color capability.
