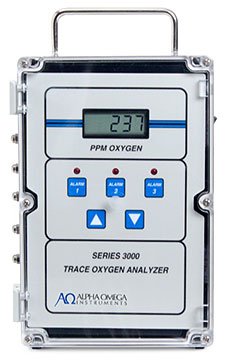

The AOI Series 3000 is a microprocessor-controlled trace oxygen analyzer designed for industrial, commercial, and educational applications requiring high flexibility. It measures oxygen from under 1 ppm up to 10,000 ppm, available in either a single-range or an optional autoranging three-range configuration . The analyzer features built-in visual and audible alarms, with three user-configurable oxygen alarm relays and one status alarm relay for fail-safe operation .

The Series 3000 utilizes a sealed electrochemical sensor that eliminates the need for periodic electrolyte maintenance. The sensor is not position-sensitive and does not require manual adjustment based on changes in the molecular weights of sample gases like helium and hydrogen. Its output is linear and temperature-compensated to provide optimum performance. For enhanced safety and reliability, the sensor is installed in a high-integrity, leak-tested metal housing equipped with 1/4" stainless steel compression fittings on both the sample gas inlet and outlet; manual isolation valves are included at no additional charge . An optional CO2-tolerant trace oxygen sensor is available for applications with up to 100% carbon dioxide, without shortening the sensor's life .

The monitor offers maximum flexibility with a wide number of optional mechanical configurations, including a watertight NEMA 4X (IP 66) enclosure. It can also be configured with an optional remote sensor that may be placed up to 1,000 feet (300 meters) from the electronics. Key features include a 0.4in (10.2mm) high, 4-1/2-digit LCD, 4-20 mADC and 0-2 VDC outputs, and factory calibration. The electronics carry a 2-year warranty, and the sensor carries a 1-year warranty .
