Product Specifications

Product Description

The KROHNE OPTIFLEX 8200 Level Transmitter is a 2-wire guided radar level transmitter based on the Time Domain Reflectometry (TDR) technology. It is designed for level and interface measurement under extreme conditions in the power, oil and gas industries. Using an algorithm called "Dynamic Gas-phase Compensation (DGC)", the device measures accurately and without increased blocking distance the level of products in processes where the composition of the gas above the product can change suddenly (e.g. in steam boilers).

KROHNE

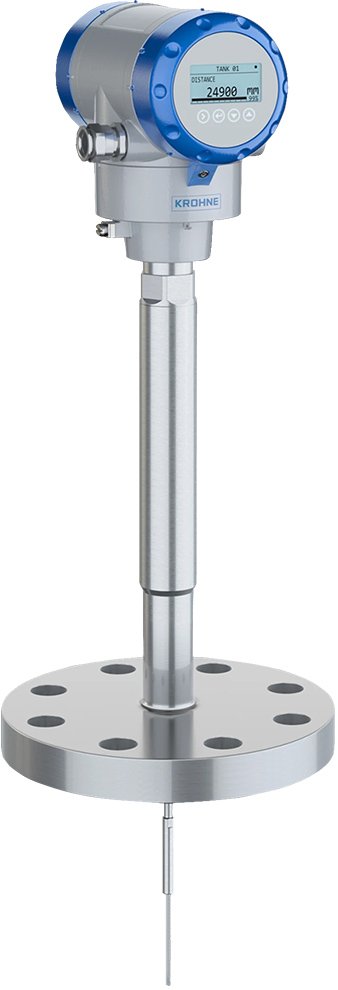

Guided Wave Radar - Extreme Conditions | KROHNE OPTIFLEX 8200

±2mm accuracy, 60m range, Dynamic Gas-phase Compensation
MPN/Series: OPTIFLEX 8200

Product Specifications

Manufacturer
KROHNE
Model Number
OPTIFLEX 8200
Type
Guided Wave Radar Level Transmitter
Measuring Range
0.6 to 60 m (1.97 to 196.85 ft)
Accuracy
±2 mm
Technology
TDR with Dynamic Gas-phase Compensation
Documents
Product Manual, Product Specs
