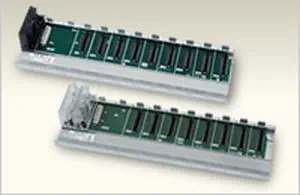

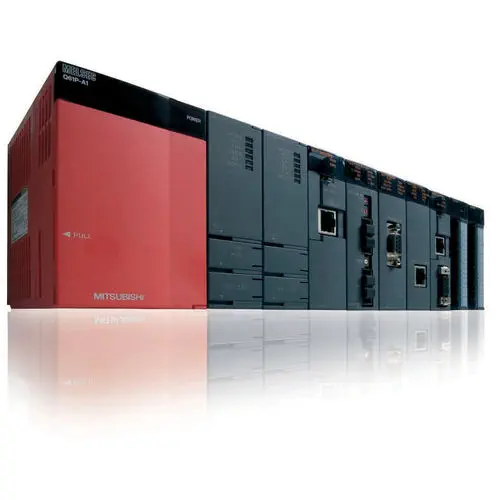

The Mitsubishi MELSEC-Q Series stands as a flagship modular PLC platform in the realm of factory automation, often described by the market as a "Nano" PLC due to its exceptionally fast nano-order processing speeds. However, its true identity lies in its robust, rack-based modular architecture, which allows system integrators to build highly customized and scalable control systems. The platform is built around a universal backplane that accommodates a diverse range of CPU modules, each tailored for specific control disciplines. This unique approach enables a single MELSEC-Q system to function simultaneously as a high-speed sequential controller, a sophisticated process automation system, an advanced motion coordinator, and even an information processor, all within a unified hardware environment.

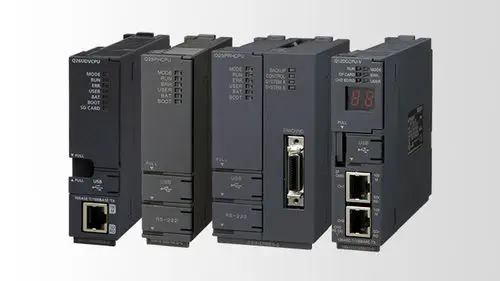

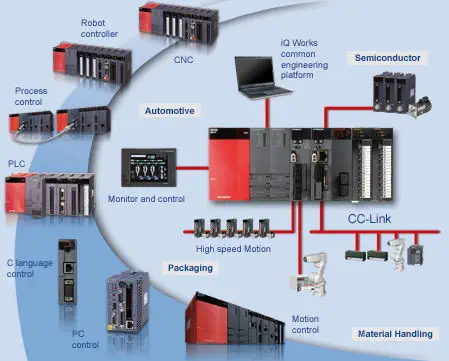

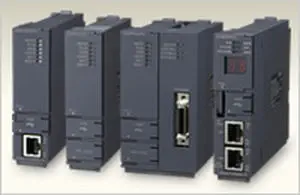

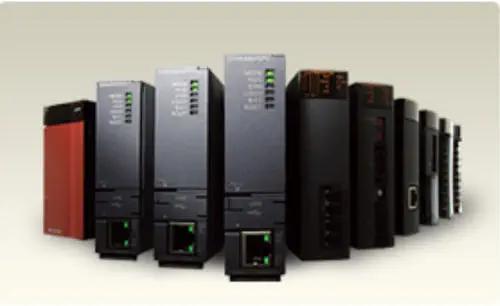

The true strength of the MELSEC-Q platform is its multi-disciplinary CPU portfolio. Beyond the high-performance Universal model CPUs for logic control, the series offers dedicated Process CPUs that rival DCS systems with advanced PID control and function block diagram (FBD) programming. Motion CPUs are capable of commanding up to 32 axes each, scaling to 96 axes in a multi-CPU configuration. Furthermore, the C Controller CPUs provide an open platform for running custom C/C++ applications, leveraging the industrial reliability of the MELSEC hardware while allowing for advanced information processing, data handling, and integration with third-party software libraries. For specialized tasks, Robot and NC (Numerical Control) CPUs are also available, making the platform uniquely suited for complex manufacturing cells that require tight integration between various automation functions.

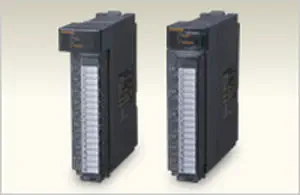

Scalability is another cornerstone of the MELSEC-Q design. A single CPU can manage a substantial number of I/O points, with high-end models supporting up to 4,096 local I/O and 8,192 remote I/O points, catering to the demands of large-scale production lines and sprawling plant operations. The system's modularity extends to its extensive range of I/O, analog, temperature, high-speed counting, and positioning modules. For network connectivity, the platform offers a comprehensive suite of options, including CC-Link IE, the gigabit industrial Ethernet standard, as well as MELSECNET/H and standard CC-Link. The built-in Ethernet port on modern CPUs supports Mitsubishi's Seamless Message Protocol (SLMP) for easy communication with HMIs and SCADA systems. Advanced information modules also enable direct data logging and exchange with MES/ERP databases.

Engineered for the rigors of industrial environments, MELSEC-Q systems offer features such as redundant power supplies and redundant CPUs for critical applications requiring high availability. The hardware conforms to a wide array of international standards, including UL, cUL, CE, and various marine certifications, ensuring global compliance and reliable operation. While the high-performance QnUDECPU models like the Q06UDEHCPU have been announced as reaching their end-of-life (with replacements available), the MELSEC-Q Series remains a mature, powerful, and deeply versatile automation platform. It is an ideal foundation for industries ranging from automotive manufacturing and semiconductor fabrication to chemical processing and large-scale material handling.
