Product Specifications
- Manufacturer
- Endress+Hauser
- Product Number
- Proline Promass S 500 / 8S5B
- Type
- Hygienic Coriolis Flow Meter
- Nominal Diameter
- DN 8 to 50 (3/8 to 2in)
- Mass Flow Accuracy (Liquid)
- ±0.10%
- Volume Flow Accuracy (Liquid)
- ±0.10%
- Density Accuracy (Liquid)
- ±0.0005 g/cm³
- Measuring Range
- 0 to 70,000 kg/h (0 to 2570 lb/min)
- Medium Temperature Range
- -50 to +150°C (-58 to +302°F)
- Max Process Pressure
- PN 40, Class 150, 20K
- Wetted Materials
- Measuring tube 1.4435 (316L), Connection 1.4435 (316L)
- Hygienic Certifications
- 3-A, EHEDG conform, large range of hygienic connections
- Process Recovery
- Fast recovery from CIP/SIP, self-drainable
- Transmitter
- Remote version with up to 4 I/Os
- Hygienic Housing
- IP69 protection
- Documents
- Product Manual , Product Specs
Product Description

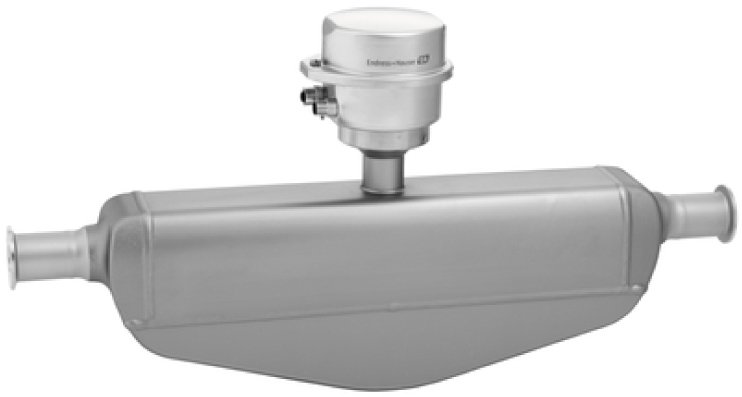

The E+H Proline Promass S 500 Coriolis flow meter is designed for food and beverage applications requiring optimal cleanability. The self-drainable single-tube system ensures careful treatment of fluids while providing easy cleaning. With its innovative remote transmitter, it maximizes installation flexibility and operational safety in demanding environments.
Available in 3/8 to 2in sizes (DN 8 to 50). 3-A and EHEDG conform with a large range of hygienic process connections. Fast recovery from CIP/SIP processes. Mass flow accuracy ±0.10%, density accuracy ±0.0005 g/cm³.
Remote version with up to 4 configurable I/Os. Hygienic sensor connection housing with IP69 protection. Heartbeat Technology ensures process safety at all times.
