Product Specifications
Manufacturer: Extech
Product Number: EX655
Product Type: 12-Function True RMS AC/DC Clamp Meter
Core Current Measurement: 60 & 600A AC/DC, 0.01A Max Resolution, ±2.5% Accuracy
Voltage Measurement: 1000VDC, 750VAC
Resistance Measurement: Up to 60MΩ
Capacitance Measurement: Up to 60mF
Frequency Measurement: 10Hz to 1MHz
Temperature Measurement: -40 to 1832°F (-40 to 1000°C) (Type K Thermocouple Compatible)
Additional Test Functions: Continuity Test, Diode Test
Display: 6000 Count Backlit LCD Display, LCD Trending Bargraph
Core Modes: Low Pass Filter (LPF) for VFD Signal Noise Reduction, Inrush Mode for Motor Startup Current Surge Capture, Low Impedance (LoZ) Mode for Ghost Voltage Elimination, DC ZERO Mode, Data Hold, MIN/MAX, Relative Function
Documents: Product Manual , Product Specs
Product Description
The Extech EX655 clamp meter performs 12 core functions including True RMS AC/DC current measurement. It features a Low Pass Filter (LPF) which attenuates high frequencies to reduce noise for accurate readings of variable frequency drive (VFD) signals, and an Inrush mode to capture transient current surges during motor startup. True RMS technology provides accurate readings when measuring distorted or noisy waveforms, and Low Impedance (LoZ) mode eliminates false readings caused by ghost voltages in electrical systems.
Features
-
60 & 600A AC/DC current measurement:
- 0.01A max resolution
- ±2.5% accuracy
- 1000VDC & 750VAC voltage measurement
- 60MΩ resistance & 60mF capacitance measurement
- 10Hz to 1MHz frequency measurement
- -40 to 1832°F (-40 to 1000°C) temperature measurement (Type K thermocouple compatible)
- Continuity & diode test functions
- 6000 count backlit LCD display
- DC ZERO mode & LCD trending bargraph
- Data Hold, MIN/MAX, and relative measurement functions
- Low Pass Filter (LPF) for VFD signal noise reduction
- Inrush mode for motor startup current surge capture
- Low Impedance (LoZ) mode for ghost voltage elimination

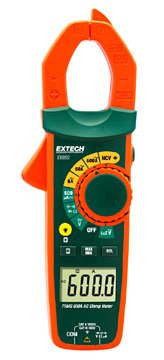

Extech EX655 Clamp Meter | 600A True RMS AC/DC with LPF/Inrush
