Product Specifications
- Manufacturer
- MadgeTech
- Product Number
- TCTempX Series (4, 8, 12, 16 channel)
- Type
- Multi-Channel Thermocouple Data Logger
- Reading Rate
- Up to 4 Hz
- Memory Capacity
- 2,000,000+ readings
- Thermocouple Types
- J, K, T, E, R, S, B, N
- Features
- Individual cold junction compensation per channel, open channel detection, channel naming (up to 10 digits), enable/disable channels, simultaneous logging of all channels
- Interface
- Standard USB-A to Micro USB (no special cable required)
- Power
- External power or user-replaceable battery
- Start Options
- Pushbutton or programmable start
- Calibration
- Calibration certificate included
- Documents
- Product Manual, Product Specs
Product Description

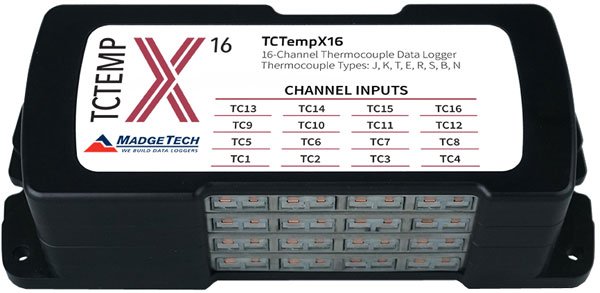

The MadgeTech TCTempX Series consists of 4, 8, 12 and 16-channel thermocouple data loggers with a reading rate of up to 4 Hz. Improvements include the elimination of an interface cable (uses standard USB-A to Micro USB), increased memory for more readings and increased download speed.
In addition, the TCTempX Series features individual cold junction compensation for each channel providing increased accuracy and response time, and if a probe is removed or severed during logging, the software automatically annotates the data. For easy identification, each channel can be named with up to a ten digit title. To maximize memory capacity, users can enable or disable channels.
The MadgeTech TCTempX Series are ideal for a variety of applications, whether it is remote temperature monitoring, or multiple points in a central location. Data from all channels is simultaneously logged. After the monitoring cycle is complete, data can be downloaded for analysis.
The series accepts thermocouple types J, K, T, E, R, S, B, N and features external power or user-replaceable battery options.
