Product Specifications
- Manufacturer
- MadgeTech
- Product Number
- Wind101A
- Type
- Wind Speed Data Logger System
- Range
- 0 to 100 MPH (0 to 160 KPH)
- Resolution
- 0.085 MPH at 10 second sampling rate
- Calibrated Accuracy
- ±2.5% over 10 to 100 MPH (16 to 160 KPH)
- Battery Life
- 10 years
- Reading Rate
- 1 second
- Memory Capacity
- 500,000 readings
- Features
- Push button start/stop, ultra high speed download, field upgradeable
- Cable
- 25 ft standard anemometer cable
- System Includes
- Data logger, weatherproof enclosure, three-cup anemometer, cabling
- Applications
- Alternative energy studies, meteorology, wind turbine location assessments
- Documents
- Product Manual, Product Specs
Product Description

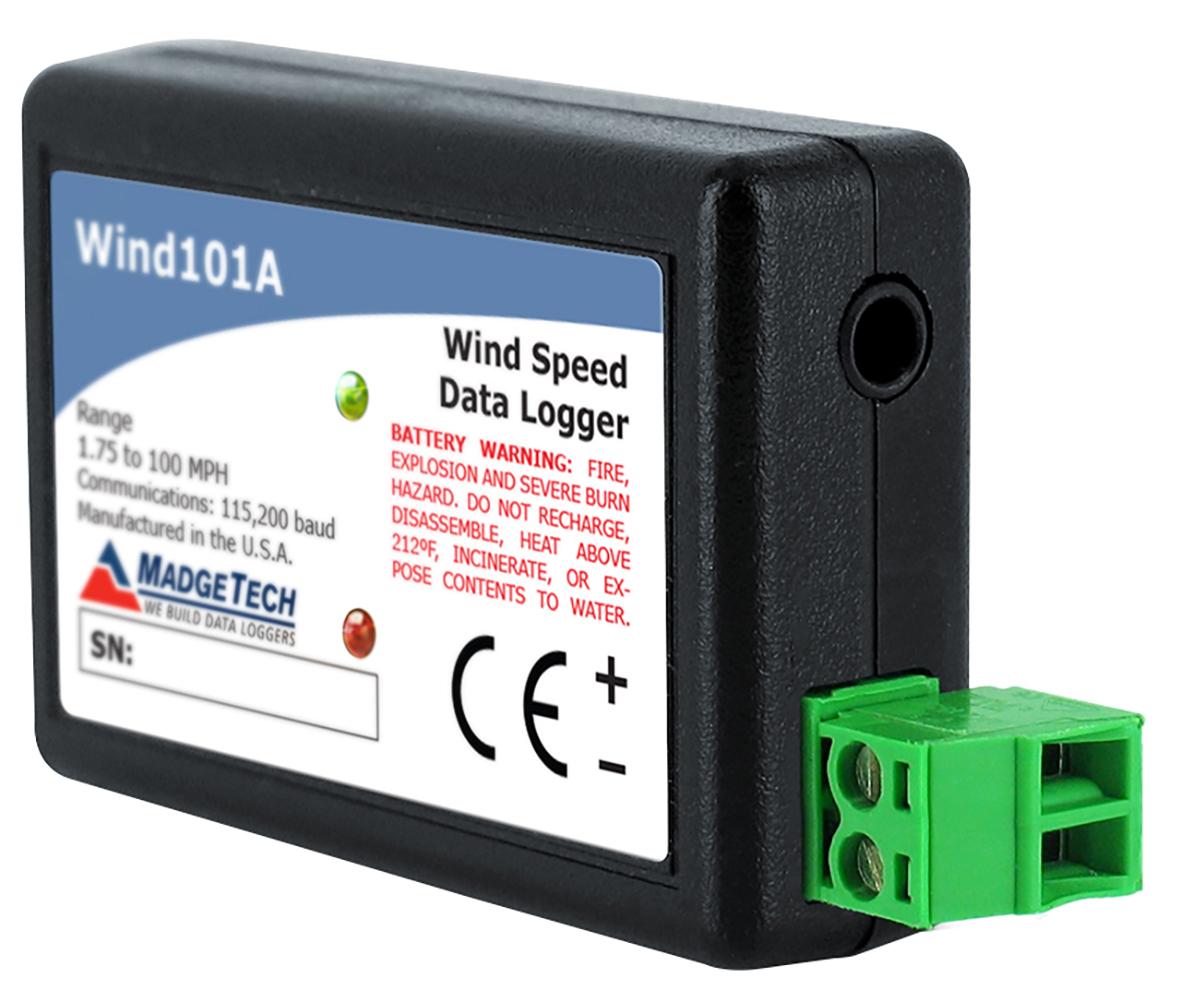

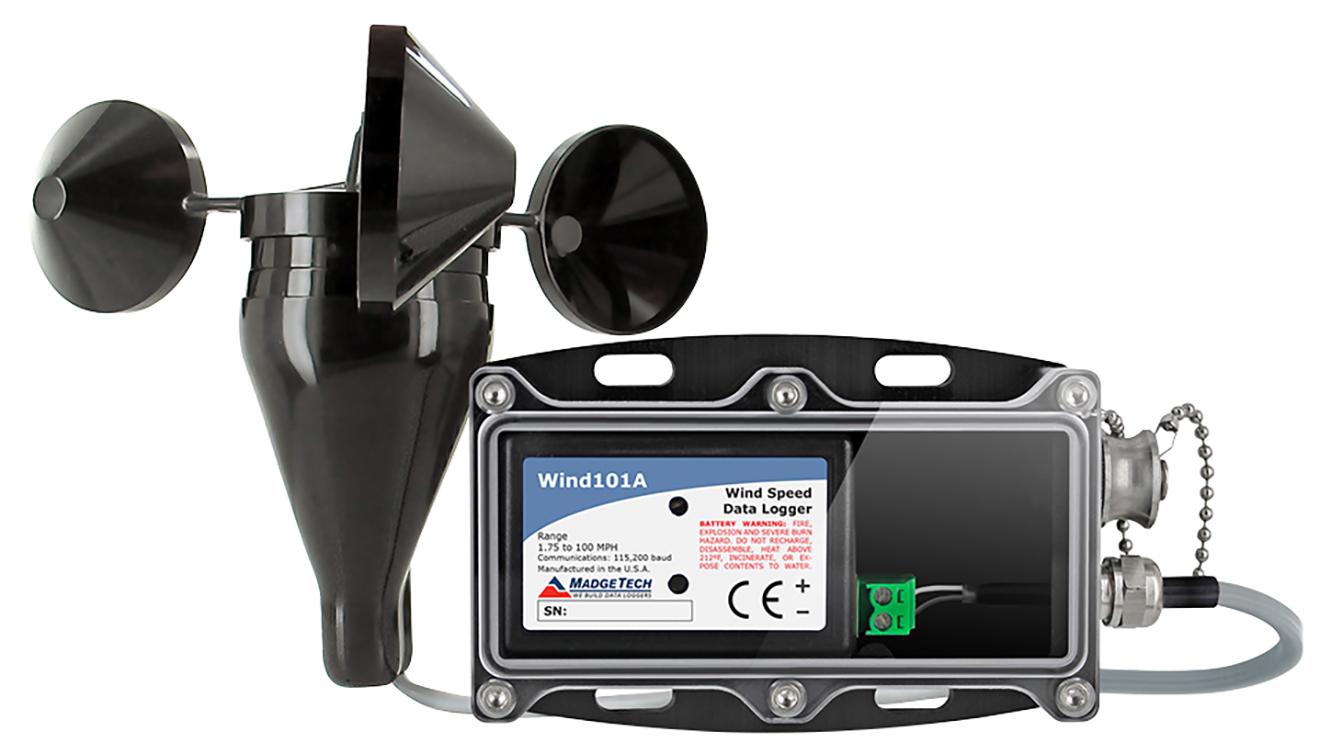

The MadgeTech Wind101A wind speed data logger system is a complete system to accurately measure and record wind speed. This low cost wind speed recording system comes complete with a data logger, weatherproof enclosure, a three-cup anemometer and all the necessary cabling to quickly get up-and-running.
The logger can record up to 500,000 readings and the storage medium is non-volatile, solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from a computer using our user-friendly software.
The Wind101A features a 10-year battery life, 1 second reading rate, push button start/stop function, ultra high speed download capability, and is field upgradeable. The system includes a 25 ft standard anemometer cable.
Applications
- Alternative Energy Studies
- Meteorology/Climatology
- Wind Turbine Location Assessments
