Product Specifications
- Manufacturer
- MadgeTech
- Product Number
- RHTemp1000Ex
- Type
- Intrinsically Safe Humidity and Temperature Data Logger
- Certifications
- ATEX, IECEx, FM 3610, Ex ia IIC T4, Zones 0-2
- Temperature Range
- -40°C to +80°C (-40°F to +176°F)
- Temperature Accuracy
- ±0.5°C (0°C to 50°C); ±0.9°F (32°F to 122°F)
- Humidity Range
- 0 to 100% RH
- Humidity Accuracy
- ±3% RH maximum
- Memory
- 32,767 readings
- Reading Rate
- 1 reading every 2 seconds to 1 every 12 hours
- Enclosure
- 316 Stainless Steel / Radel
- Features
- Programmable start up to 24 months in advance, real-time operation
- Software
- MadgeTech 4 Software compatible
- Documents
Product Description

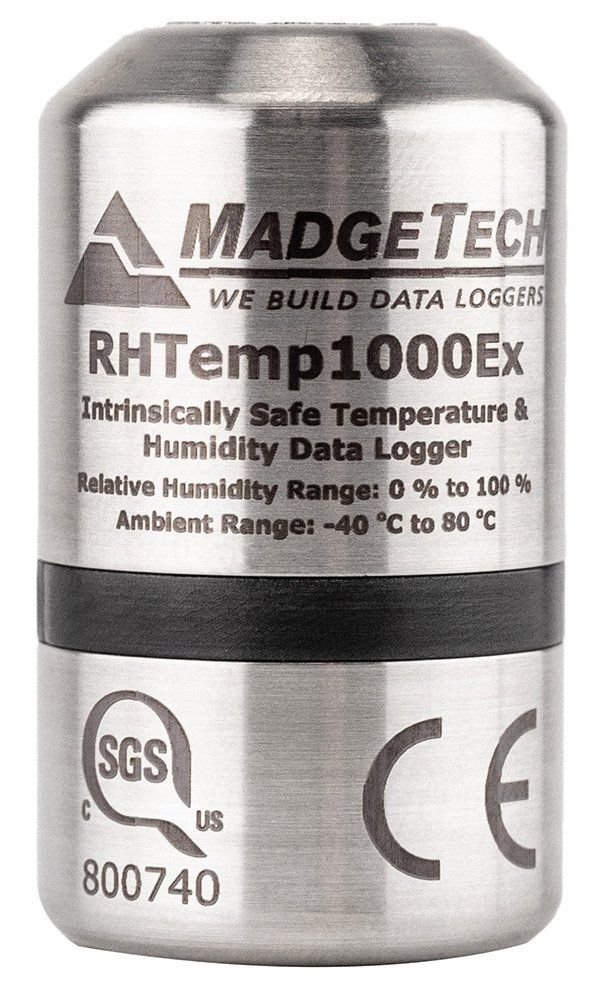

MadgeTech RHTemp1000Ex Humidity and Temperature Data Logger is compact and carries hazardous-location and intrinsically-safe global certification (ATEX, IECEx, FM 3610).
This one of a kind data logger is certified intrinsically safe for the following:
- Electrical Protection Concepts: ISO/IEC; 60079-11 Ex ia – Ex ic, Intrinsic Safety Zones 0-2
- Equipment Protection Level: Ga – Gc, Zones 0-2
- Gas Groups: IIA – IIC
- Temperature Class: T4
The RHTemp1000Ex measures and records temperatures from -40 to 176°F (-40 to 80°C) with an accuracy of ±0.9°F (32 to 122°F) and ±0.5°C (0 to 50°C). It can store up to 32,767 time- and date-stamped readings, and is able to be programmed to start up to 24 months in advance.
MadgeTech RHTemp1000Ex Humidity and Temperature Data Logger is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
