Product Specifications
Manufacturer: Armstrong International
Product Number: FHS Series
Product Type: Electric Condensate Pump
Max Discharge Pressure: 20psig
Pump Capacity: 12 to 30gpm
Receiver Capacity: 8 to 30gal
Configuration: Simplex, Duplex
Max Water Temperature: 200°F (250°F rated mechanical seals)
Mounting Type: Floor-mounted
Max EDR Rating: 20,000sq ft
Documents: Product Manual
Product Description

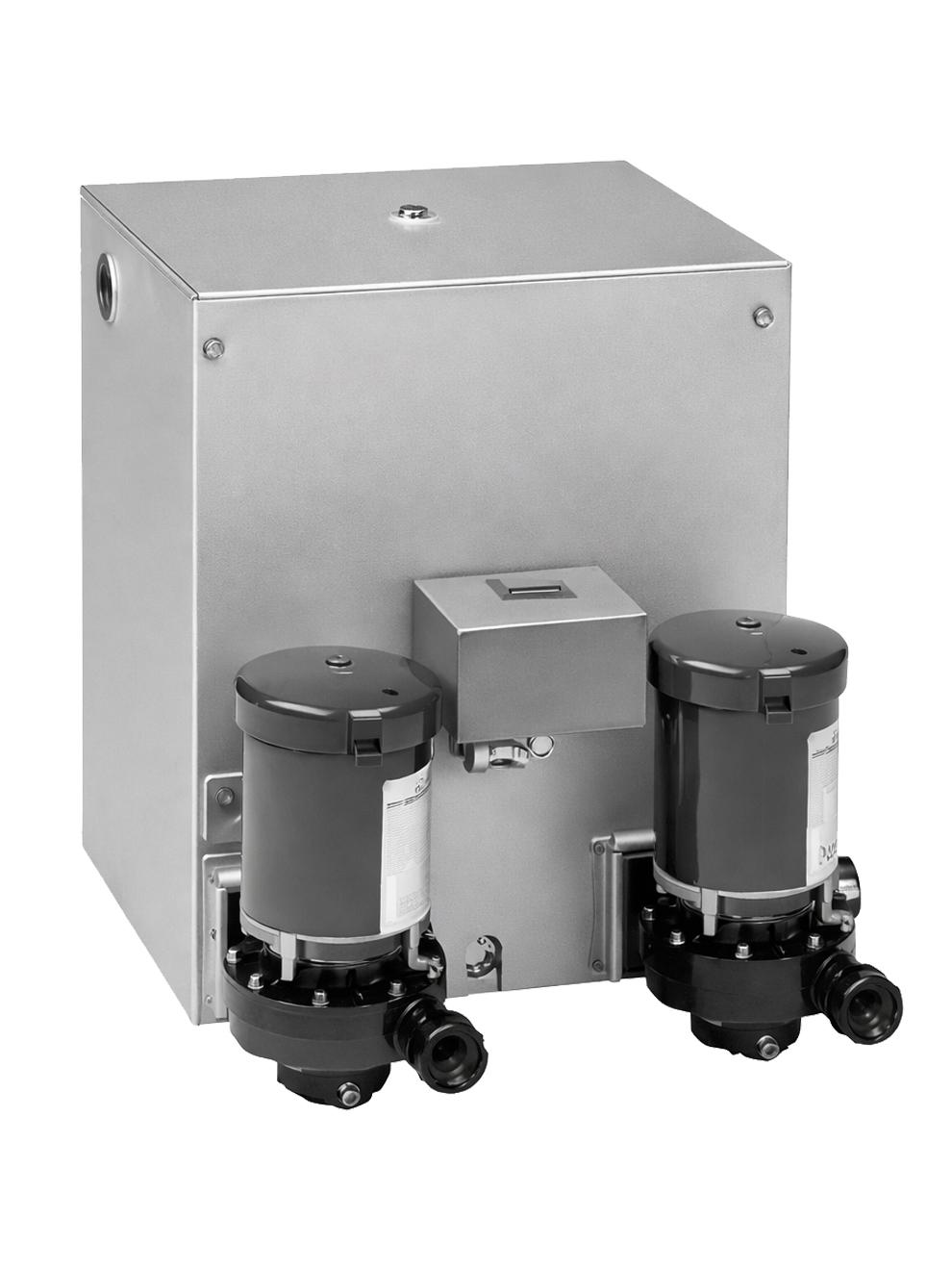

The Armstrong International FHS Series Electric Condensate Pump is designed for pumping water at temperatures up to 200°F. Standard black steel receivers are provided, and units are floor-mounted, engineered for up to 20,000sq ft EDR with discharge pressures up to 20psig. The FHS is available in either simplex or duplex configurations with 3500 RPM, single-phase motors. Pumps are typically equipped with mechanical seals rated for temperatures up to 250°F.
Features
- 20psi maximum discharge pressure
- 12 to 30gpm pump capacity
- 8 to 30gal receiver capacity
-
Motor specifications:
- 1/60/115-230V
- ODP enclosure
- 3500 RPM
- 1/3, 1/2, or 3/4 HP
-
Included components:
- NEMA 1 float switch (simplex only)
- NEMA 1 mechanical alternator (duplex only)
- Floor-mounted, designed for 20,000sq ft EDR
- Mechanical seals rated up to 250°F
