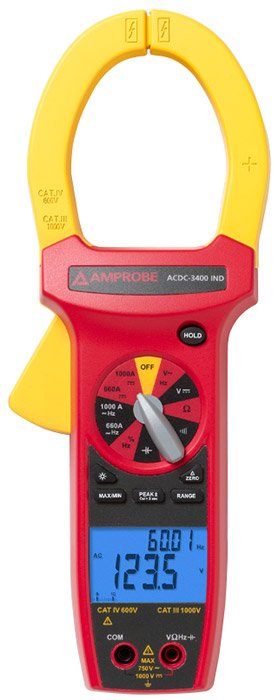

The Amprobe ACDC-3400 IND is a CAT IV rated clamp meter ideal for industrial applications and utilities that require an extra level of safety. The meter includes True RMS sensing for reliable accuracy, and extra large jaws to accommodate wide diameter wires.

The Amprobe ACDC-3400 IND measures AC current up to 1000 A, voltage up to 750VAC / 1000VDC, plus frequency, resistance, capacitance and duty cycle. Measurements are displayed on a 3-3/4 digit LCD with a 66-segment analog bar-graph. The ACDC-3400 IND is equipped with a full suite of functions including peak hold, relative zero, audible continuity test, auto and manual ranging, auto power off, data hold, diode test and overload protection. It has a large jaw opening that accommodates conductors up to 2 inches (51mm) in diameter.

The Amprobe ACDC-3400 IND ships complete with:

• Test leads
• Battery
• User manual
• Carrying case

Features

• DC Voltage
  • Ranges: 660.0 mV, 6.600 V, 66.00 V, 660.0 V, 1000 V
  • Accuracy: ±(0.5 % rdg + 2 dgts)
• AC Voltage
  • Ranges: 660.0 mV, 6.600 V, 66.00 V, 660.0 V, 750 V
  • Accuracy: ±(1.5 % rdg + 8 dgts)
• AC/DC Current
  • Ranges: 660.0 A, 1000 A
  • Accuracy: up to ±(2.0 % rdg + 5 dgts)
• Resistance
  • Ranges: 660.0Ω, 6.600kΩ, 66.00kΩ, 660.0kΩ, 6.600MΩ, 66.00MΩ
  • Accuracy: up to ±(1% rdg + 5 dgts)
• Capacitance
  • Ranges: 6.600 nF, 66.00 nF, 660.0 nF, 6.600 μF, 66.00 μF, 660.0 μF, 6.6 mF
  • Accuracy: up to ±(3.0 % rdg + 10 dgts)
• Frequency
  • Ranges: 66.00 Hz, 660.0 Hz, 6.600kHz, 66.00 kHz, 660.0 kHz, 1.000 MHz
  • Accuracy: ±(0.1 % rdg + 3 dgts)
• Continuity: Audible Indication < 30 Ω
• Duty cycle measurement
• Diode Test current: approx. 1.0 mA
• Full overload protection
• 3-3/4 digit LCD with 66-segment analog bar-graph
• Jaws accommodate conductors up to 2” in diameter
• CAT IV 600 V, CAT III 1000 V safety rating
