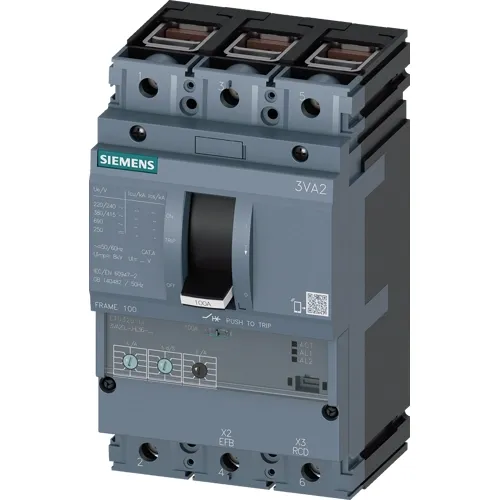

85kA 3-Pole 63A MCCB, ETU320 LI, Clamp Connection – Siemens 3VA2

1 / 5

Product Specifications

Brand: Siemens
Part Number: 3VA2063-6HL36-0AA0
Series: 3VA2
Type: Molded Case Circuit Breaker
Number of Poles: 3
Rated Current In: 63 A
Breaking Capacity @415 V: 85 kA (Class H)
Protection: ETU320 LI

Product Description

For compact three-phase panels that face high fault currents, the 3VA2063‑6HL36‑0AA0 delivers 85 kA H-class breaking in a space-efficient 3-pole design. Its ETU320 LI trip unit focuses on essential overload and instantaneous protection without extra features that add cost.

Protection Functions

Overload (L): Ir = 25…63 A, I²t characteristic, delay tr = 0.5…17 s.
Instantaneous (I): Ii = 1.5…12 × In (95…756 A).

No neutral protection, no communication, no ground-fault — just reliable tripping where it matters.

Technical Specifications

Parameter	Value
Rated Insulation Voltage Ui	800 V AC
Rated Operational Voltage Ue	690 V AC
Breaking Capacity Icu @415 V	85 kA (Class H)
Service Breaking Capacity Ics @415 V	85 kA
Making Capacity Icm @415 V	187 kA
Mechanical / Electrical Life	25 000 / 15 000 ops @415 V
Power Loss	1.8 W/pole (hot state), 5.4 W total max
Degree of Protection	IP40 (front face)
Ambient Temperature	40 °C to 70 °C (full 63 A rating)
Net Weight	2.277 kg
Standard	IEC/EN 60947-2
Country of Origin	Czech Republic

Installation & Application

Fixed mount on 35 mm DIN rail; clamp terminal connection.
Typical use in compact high-fault industrial distribution boards, motor control centres, and generator panels where three-phase protection is sufficient.
