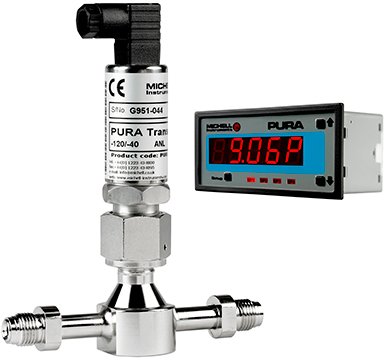

The Michell Instruments Pura Online is a self-contained hygrometer designed specifically to measure trace moisture content in ultra high purity gas applications such as semiconductor manufacturing, fiber optic production, optical coating processes, or pure gas production . The Pura Online offers a measurement range of -120 to -40°Cdp (-184°F to -40°Fdp) and is calibrated to -148 to -40°F (-100 to -40°C).

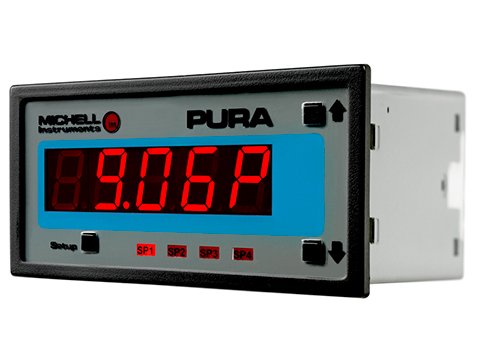

The display features an IP65 front panel (IP20 rear panel) and provides the user with two alarm relays and RS-232 two-way communication capabilities. The digital communication function allows for full data access and total availability of all set-up options including configuring and scaling the 0 to 20mA or 4 to 20mA analog output. Additionally, a 0 to 10V output can be configured with the addition of a 500Ω shunt resistor (not included) .

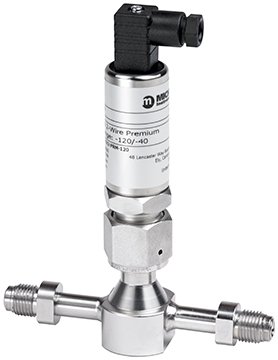

A hazardous area approval is available when the 2-wire analog output is selected. The operating pressure must fall within 10⁻⁹ torr (10⁻⁷ Pa) and 240 barg (24 MPa) and the flow rate can be from 2.11 to 10.59 scfh (1 to 5 Nl/min). The transmitter is available as a standalone sensor or with an optional sampling block. Process connections are 1/4in and 1/2in male VCR for high purity gas systems.

Key Features

• Measurement range: -120 to -40°Cdp (-184 to -40°Fdp)
• Calibrated from -100 to -40°C (-148 to -40°F)
• Accuracy: up to ±1°C (±1.8°F)
• Operating pressure: 10⁻⁹ torr to 240 barg
• Flow rate: 1 to 5 Nl/min (2.11 to 10.59 scfh)
• 4-digit display
• User-configurable 0-20mA or 4-20mA output
• RS-232 two-way communication
• 2 alarm relays
• 1/4in and 1/2in male VCR process connections
• IP65 front panel rating
• Optional hazardous area approval

Applications

• Semiconductor manufacturing
• Fiber optic production
• Optical coating processes
• Pure gas production
• Ultra high purity gas monitoring
