Product Description

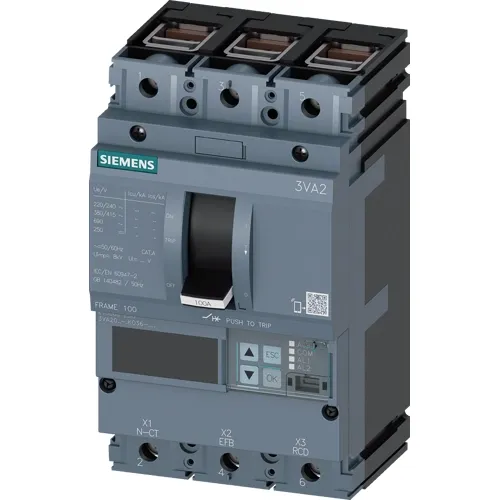

The 3VA2063-5KQ36-0AA0 is the 3-pole variant of the ETU860 family — the flagship trip unit in the SENTRON 3VA2 lineup. It delivers full LSIG protection with communication and measurement built in, making it the go-to choice when you need comprehensive system data alongside protection, without the extra width of a 4-pole frame.

Protection Functions

Overload (L): Ir = 25…63 A, I²t characteristic, delay tr = 0.5…25 s.
Short-time (S): Isd = 0.6…10 × In (38…630 A), tsd = 0.05…0.5 s.
Instantaneous (I): Ii = 1.5…12 × In (95…756 A).
Ground-Fault (G): Ig = 0.25…1 × In, tg = 0.05…0.8 s. Detected via residual current summation; switchable.
Communication & Measurement: Integrated — transmits operating data, alarms, and energy values via optional Modbus TCP, Modbus RTU, PROFINET, or PROFIBUS modules.

Technical Specifications

Parameter	Value
Rated Insulation Voltage Ui	800 V AC
Rated Operational Voltage Ue	690 V AC
Breaking Capacity Icu @415 V	55 kA (Class M)
Service Breaking Capacity Ics @415 V	55 kA
Making Capacity Icm @415 V	121 kA
Mechanical / Electrical Life	25 000 / 15 000 ops @415 V (10 500 ops @690 V)
Power Loss	1.8 W/pole (hot state), 5.4 W total max
Degree of Protection	IP40 (front face)
Ambient Temperature	40 °C to 70 °C (full 63 A rating)
Net Weight	2.500 kg
Packaging Dimensions	134 × 200 × 145 mm
Standard	IEC/EN 60947-2
Country of Origin	Czech Republic

Installation & Application

Fixed mount on 35 mm DIN rail; clamp terminal connection.
Typical applications: system protection in industrial main distribution boards, motor control centres, and infrastructure where 3-pole LSIG coordination and remote monitoring are needed.
