Product Specifications
Manufacturer:MadgeTech
Product Number:Cryo-Temp
Type:Ultra-Low Temperature Data Logger
Temperature Range:-86°C to +35°C (-122.8°F to +95°F)
Calibrated Accuracy:±1.0°C (±1.8°F)
Memory:64,024 readings
Reading Rate:5 seconds to 24 hours
Battery Life:2 years typical at 25°C, 1 minute readings; 1 year at -80°C, 1 minute readings
Material:ABS plastic with handle for easy attachment
Ingress Protection:IP64 (splash resistant)
Features:Programmable high/low alarm limits and warning limits, LED status indicators (green/yellow/red), magnetic start, optional password protection
Software:MadgeTech 4 Software compatible
Approvals:CE
Documents: Product Specs
Product Description

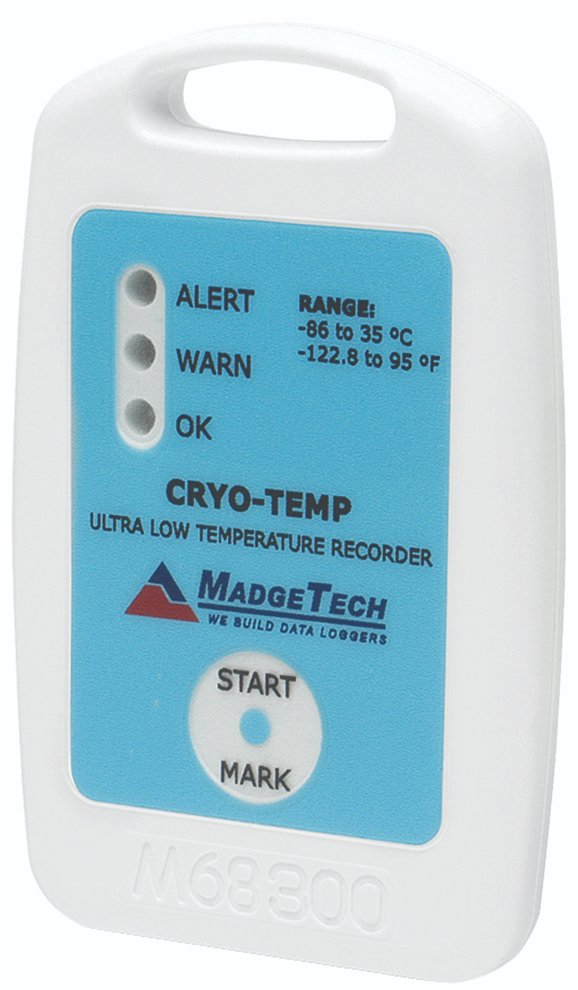

The MadgeTech Cryo-Temp is an ultra low temperature data logger capable of recording temperatures as low as -86°C. Such a low range allows the Cryo-Temp to be used in a broad line of applications such as monitoring blood plasma, vaccines, pharmaceuticals, frozen foods and shipping containers.
The Cryo-Temp is a stand-alone device that requires no additional probes. The enclosure is designed with a handle for easy attachment and is splash proof (IP64) making it easy to install and set-up the device. It can be placed in direct contact with dry ice.
The device provides date and time stamped temperature readings. High and low alarm limits and high and low warning limits can be programmed through the software. The user can set the alarm limits in the range required for the goods to be maintained. The warn limits can be set to alert the user when the temperature is nearing a high or low alarm limit.
The Cryo-Temp is equipped with three LEDs. The green LED will blink every 15 seconds while the recorder is logging. The yellow LED will blink every 3 seconds when the temperature has breached the warning limits. The red LED will blink every 3 seconds when the temperature alarm has been breached. The Cryo-Temp is the ideal temperature monitoring solution for any application involving low temperature data logging.
