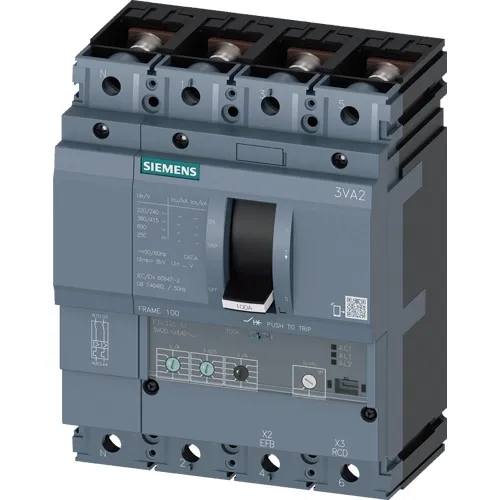

85kA 4-Pole 63A MCCB with Nut-Keeper Terminals, ETU320 LI – Siemens 3VA2

1 / 5

Product Specifications

Brand: Siemens
Part Number: 3VA2063-6HL42-0AA0
Series: 3VA2
Type: Molded Case Circuit Breaker
Number of Poles: 4
Rated Current In: 63 A
Breaking Capacity @415 V: 85 kA (Class H)
Protection: ETU320 LI
Terminal: Nut Keeper Kit

Product Description

Built for switchgear where busbars are the standard, the 3VA2063‑6HL42‑0AA0 delivers 85 kA H-class breaking in a 4-pole frame. Its ETU320 LI trip unit handles overload and instantaneous protection, while the nut-keeper kit provides a durable screw-flat connection directly to busbars or heavy lugs.

Protection Summary

Overload (L): Ir = 25…63 A, I²t characteristic, tr = 0.5…17 s.
Instantaneous (I): Ii = 1.5…12 × In.
Neutral (N): Adjustable OFF or 100% of In.

No communication, no ground-fault — just essential protection without extra cost.

Technical Specifications

Parameter	Value
Rated Insulation Voltage Ui	800 V AC
Rated Operational Voltage Ue	690 V AC
Breaking Capacity Icu @415 V	85 kA (Class H)
Service Breaking Capacity Ics @415 V	85 kA
Making Capacity Icm @415 V	187 kA
Mechanical / Electrical Life	25 000 / 15 000 ops @415 V
Power Loss	1.8 W/pole (hot state), 5.4 W total max
Degree of Protection	IP40 (front face)
Ambient Temperature	40 °C to 70 °C (full 63 A rating)
Net Weight	2.740 kg
Standard	IEC/EN 60947-2
Country of Origin	Czech Republic

Installation & Application

Fixed mount on 35 mm DIN rail; nut-keeper kit for direct busbar integration.
Used in high-fault main distribution boards, motor control centres, and generator panels where 4-pole switching and busbar connection are the norm.
