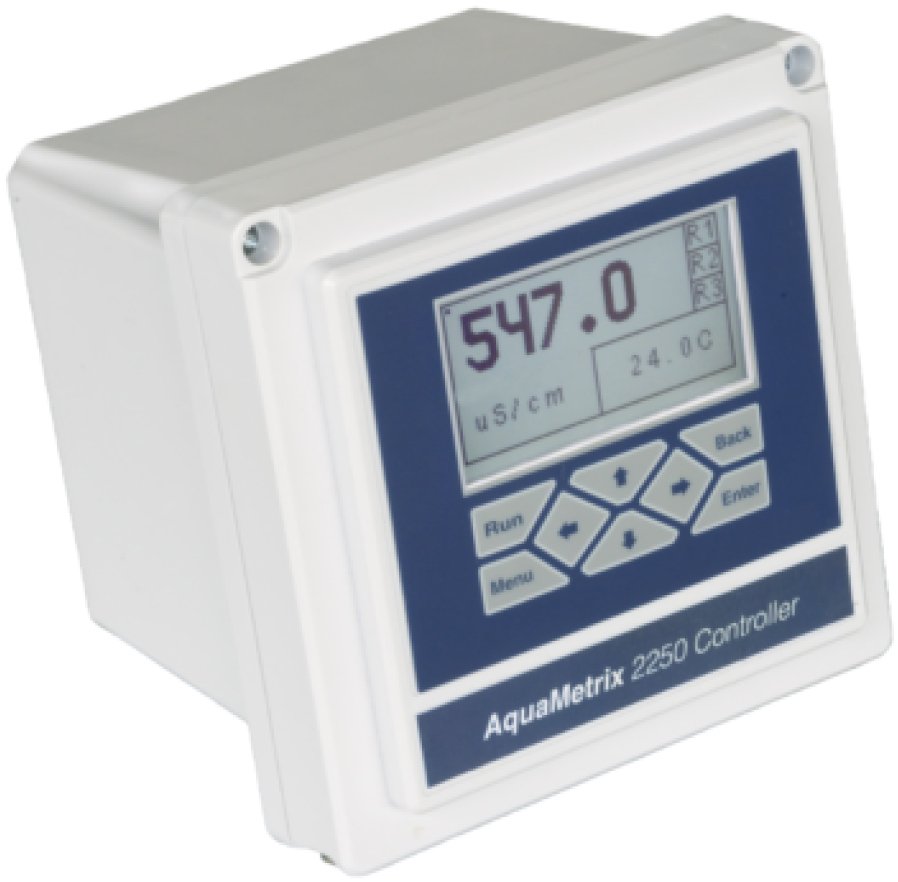

The Aquametrix AM-2250 is a multi-parameter process controller designed for monitoring pH, ORP, contacting conductivity, and flow in industrial applications. It accepts input from 6-wire differential or combination pH/ORP sensors, 2-electrode conductivity cells (cell constants 0.01 to 100), and pulse-type flow sensors .

The controller features three independent control/alarm relays with adjustable high, low, and in-range setpoints. Each relay has a configurable cycle timer with adjustable on/off times to eliminate chemical overshoot in batch processes. The third relay can be triggered by temperature or flow totalizer reading.

Two isolated 4-20 mA outputs provide process variable and temperature signals, with PID control available on the primary output . Calibration flexibility includes 2-3 point pH calibration and up to 16-point conductivity calibration for acids and bases .

Housed in a NEMA 4X polycarbonate enclosure, the AM-2250 is suitable for indoor and outdoor installation. The backlit LCD display and intuitive keypad enable easy setup and menu navigation. Universal mounting hardware supports wall, panel, or optional pipe mounting. Operating temperature range is -20 to 70°C (-4 to 158°F) with 0-90% RH non-condensing .

Applications include industrial process control, municipal water and wastewater treatment, fume scrubbers, HVAC, cooling towers, and boilers [citation:5].
