Product Specifications

Product Description

The E+H Levelflex FMP53 guided wave radar level transmitter is designed for continuous level measurement for hygienically sensitive applications in the food and life sciences industries. The FMP53 meets the hygiene requirements according to ASME BPE and USP Class VI. The FMP53 features unique in-situ validation without dismantling from the process, and offers maximum reliability even in case of a turbulent liquid or foam surface, changing media or filling via spray head.

The Levelflex FMP53 offers HistoROM data management for fast and easy commissioning, maintenance and diagnostics, and Heartbeat technology for cost-effective and safe plant operation during the entire life cycle.

Endress+Hauser

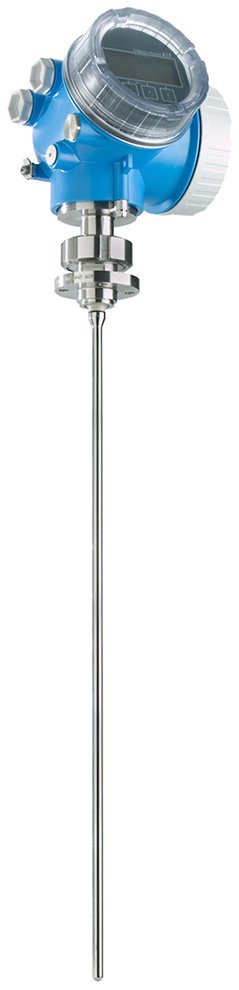

Hygienic Guided Wave Radar - Food & Life Sciences | E+H Levelflex FMP53

ASME BPE, USP Class VI, in-situ validation, Heartbeat
MPN/Series: FMP53

Product Specifications

Manufacturer: Endress+Hauser

Model Number: Levelflex FMP53

Type: Guided Wave Radar Level Transmitter

Measuring Range: 6 m (20 ft)

Accuracy: ±2 mm

Process Temp: -20 to 150°C

Process Pressure: -1 to 16 bar

Documents: Product Manual, Product Specs
