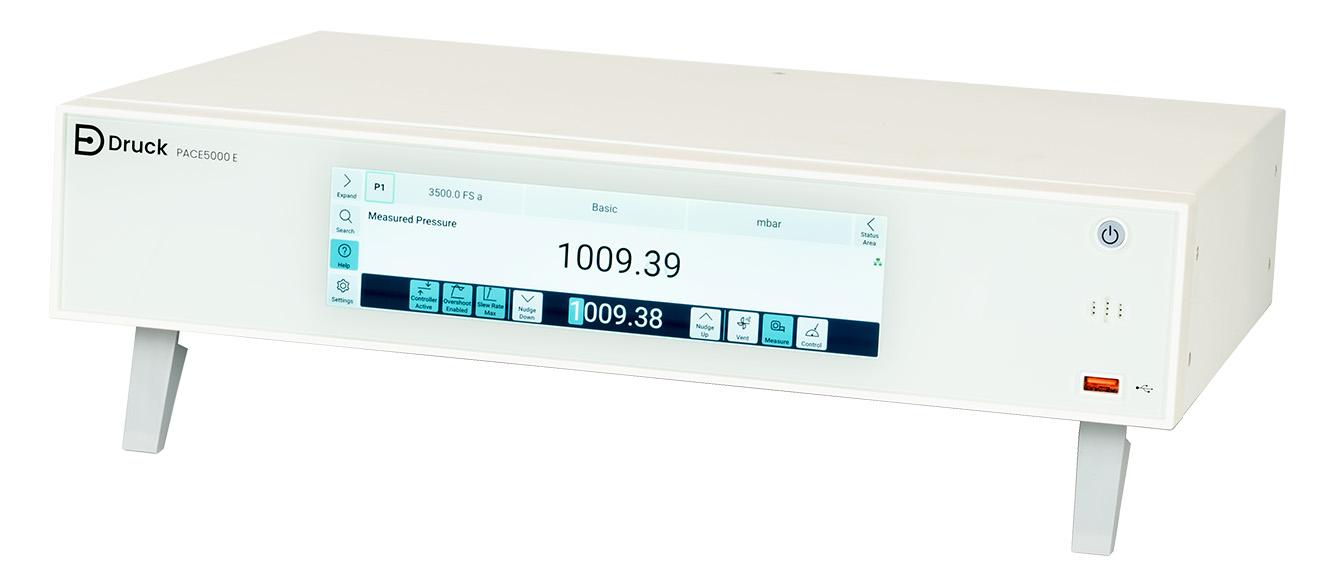

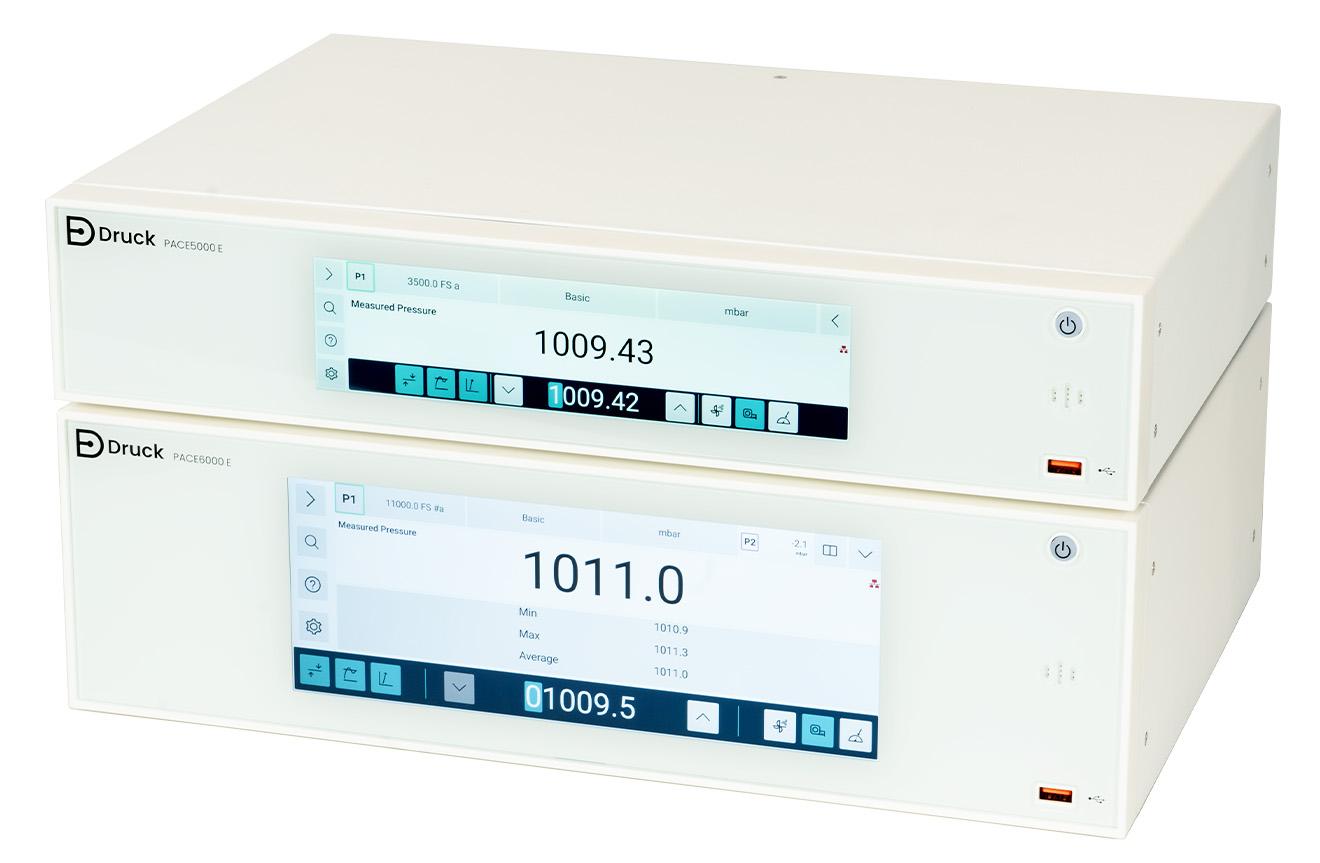

The Druck PACE5000E / PACE6000E Modular Pressure Controller features an updated chassis that is fully compatible with existing control modules, SCPI commands, and maintain the same connection locations and dimensions as the previous PACE5000 and PACE6000 models.

The PACE5000E and PACE6000E feature full digital control to provide high control stability and high slew rate, while its digitally characterized pressure sensor offers the quality, stability, higher bandwidth, and precision associated with this latest generation of piezo-resistive and TERPS devices.

The PACE5000E can also be used with any interchangeable PACE CM control module as a bench top or rack mounted pressure controller and is an ideal option for end of line testing and production as well as wider industrial applications due it's speed and control stability but equally suited to a laboratory and workshop environment.

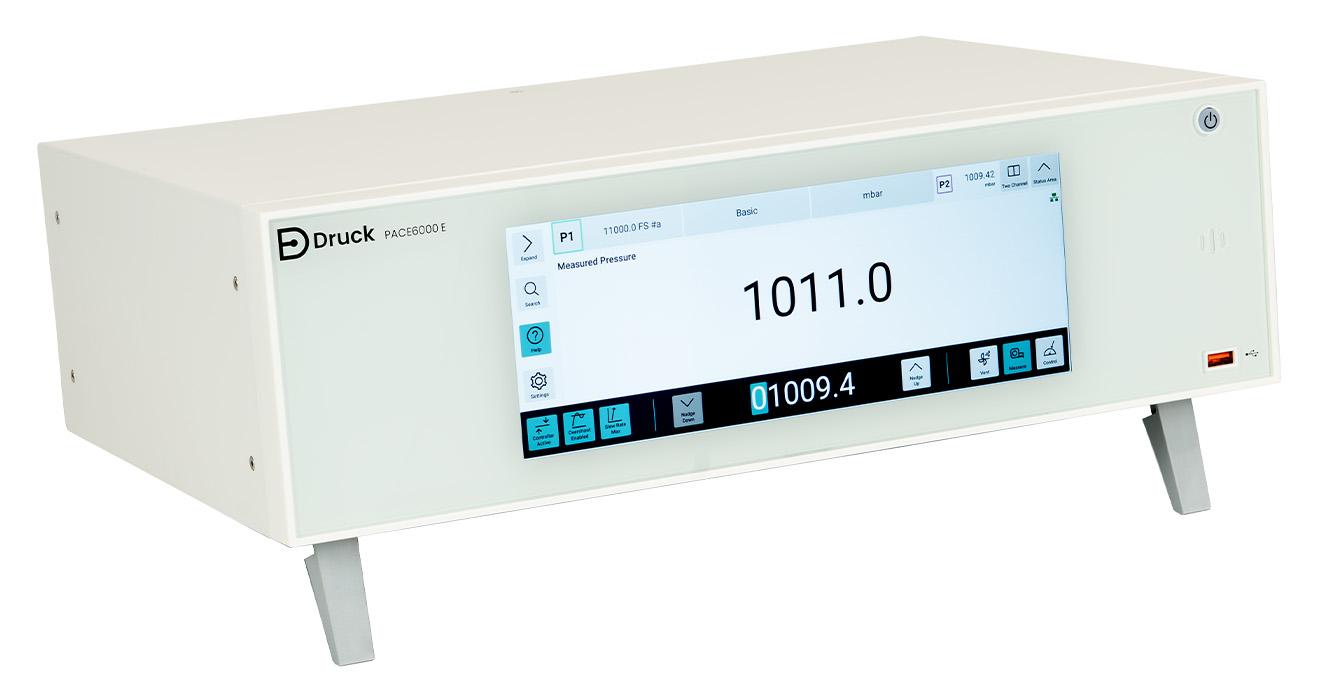

The PACE6000E, with two PACE CM control modules fitted, can be used in single, auto-ranging or simultaneous dual pressure control mode. The PACE6000E has increased flexibility due to its multi-channel capability and is often chosen for calibration and lab-based work due to the stability and accuracy of the measurement but equally capable in an industrial environment due to its speed and large display.

The leak test option applies a test pressure(s) to an external system connected to the instrument to determine the magnitude of pressure variations due to leaks. This application sets the test pressure and a dwell time to eliminate potential adiabatic effects at the test pressure and the leak test time period. On completion, the display shows the Start Pressure, End Pressure, Pressure Change and Leak Rate.

The burst test option is an application for the PACE Series designed primarily for the testing of pressure rupture discs. The burst test option applies a controlled increase of pressure and accurately measures the exact point at which the device rupture or burst occurs.
