Product Specifications
- Manufacturer
- Rosemount
- Product Number
- Model 142
- Product Type
- Insertion Type Contacting Conductivity Sensor
- Available Cell Constants
- 0.01/cm and 0.1/cm
- Target Conductivity Range
- Low to medium conductivity liquids
- Electrode Material
- 316 stainless steel
- Body Material
- 316 stainless steel
- Insulator Material
- PEEK (high temperature option), PCTFE (low temperature option)
- Junction Box Material
- Cast aluminum
- Process Connection
- 3/4 inch MPT
- Mounting Options
- Screw-in or retractable mounting configurations
- Temperature Versions
- Low temperature (302°F / 150°C max), High temperature (392°F / 200°C max)
- Seal Material
- Viton® O-rings
- Documents
- Product Manual, Product Specs
Product Description

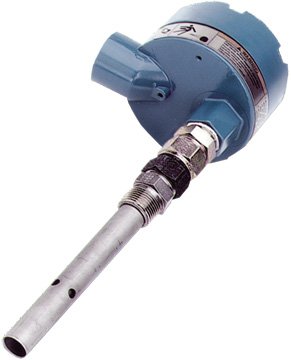

The Rosemount Model 142 sensor is an insertion type contacting conductivity sensor having a 3/4 inch MNPT process connector.
The sensor is available in both a low temperature (302°F (150°C)) and high temperature (392°F (200°C)) version. Both versions use 316 stainless steel electrodes with a PEEK insulator and Viton® O-rings. Wiring between the sensor and analyzer is through a junction box mounted on the back of the sensor.
Cell constants of 0.01/cm and 0.1/cm allow the sensor to cover a broad range of liquids having low to medium conductivity.
Features
- Screw-in or retractable mounting configurations
- Electrodes: 316 stainless steel
- Body: 316 stainless steel
-
Insulator:
- PEEK (high temperature option)
- PCTFE (low temperature option)
- Junction box: cast aluminum
- Process Connection: 3/4 inch MPT
