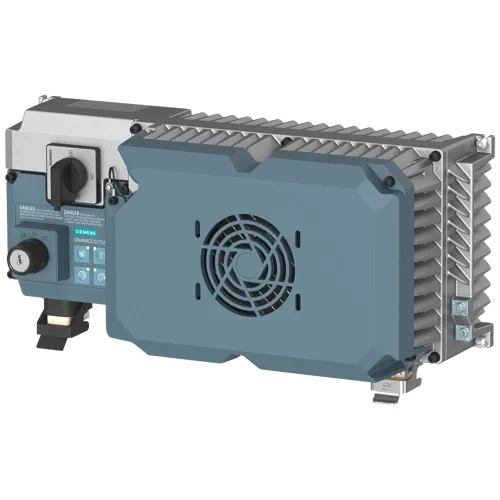

The Siemens 6SL3520-0XE05-5AB0 is the PROFINET communication variant at 5.5 kW in the SINAMICS G115D series, carrying the XE05 catalog designation in the XE0x sub-series. It delivers 13.2 A rated / 26.4 A overload from the FSC frame — the mid-power G115D workhorse for main-line conveyor sections — with PROFINET IO, EtherNet/IP, and PROFIsafe on a single Ethernet interface.

What does the AB0 PROFINET variant bring to the 5.5 kW tier?

The AB0 interface integrates three functions on one cable that would otherwise require separate wiring: motion control (PROFINET IO with standard telegram 1 for speed setpoint), functional safety (PROFIsafe telegram 30 for STO at SIL3), and network redundancy (MRP ring via the built-in 2-port switch). The 2-port switch eliminates the need for external Ethernet switches between drives — each G115D passes the PROFINET frame to the next drive in line topology. At 5.5 kW, where drives are deployed on the primary conveyor arteries, the AB0 variant also supports EtherNet/IP — meaning the same drive PN can operate in both Siemens (PROFINET) and Rockwell (EtherNet/IP) PLC architectures without gateway hardware.

How does XE05 AB0 compare to the AA0 and AF0 variants?

All three XE05 variants share the identical 5.5 kW FSC hardware. AA0 (I/O Control) uses discrete digital inputs for run/stop and an analog input for speed — no fieldbus. AF0 substitutes the two-wire AS-Interface bus. AB0 adds full PROFINET real-time Ethernet with daisy-chain topology, integrated safety, and EtherNet/IP coexistence. The choice depends on the control architecture: AA0 for a simple PLC with available I/O cards, AF0 for AS-Interface-standardized lines, AB0 for PROFINET-networked systems where safety integration and ring redundancy justify the per-drive Ethernet infrastructure.
