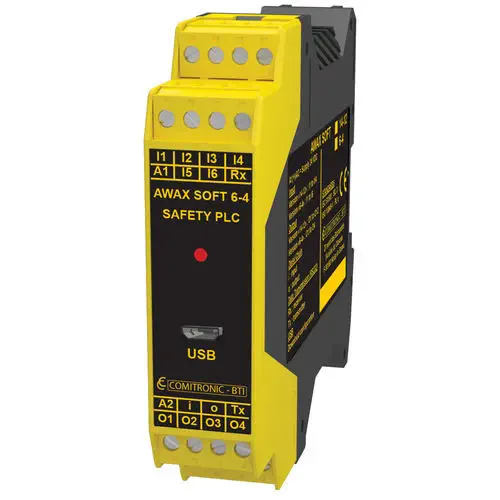

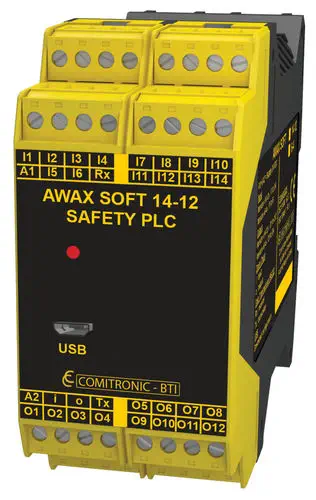

The COMITRONIC-BTI AWAX SOFT is a versatile, programmable safety automation device certified to the highest safety levels: SIL 3 (IEC 61508) and PLe (ISO 13849-1). Designed for small and medium-sized machinery, it offers a flexible and cost-effective solution to replace dedicated safety relays. Its ultra-short response time (<10ms) ensures rapid system reaction to safety-critical events, minimizing risk and downtime.

Key Features

• High Safety Integrity: Certified to SIL 3 and PLe, suitable for safety-critical applications requiring reliable protection of personnel and equipment.
• Programmable Flexibility: Can be pre-programmed in one click for standard safety functions, or fully customized to meet specific application requirements using the free Windows programming software.
• Ultra-Fast Response: Response time of less than 10 milliseconds ensures rapid system reaction and enhanced safety.
• Versatile Connectivity: Features USB and RS232 outputs for seamless integration with PCs for programming and diagnostics.
• Wide Power Range: Operates on 9 to 30 VDC, compatible with diverse industrial power systems.
• Rugged Design: Built to operate reliably in temperatures ranging from -20°C to +55°C, with IP20 protection for control cabinet installation.
• Comprehensive Certifications: UL 508, CSA C22.2, OSHA, and NFPA 79 certified, ensuring compliance with North American safety standards.
• 3-Year Warranty: Backed by a comprehensive 3-year warranty, reflecting confidence in product quality and reliability.

Technical Specifications

• Supply Voltage: 9 to 30 VDC (<8A)
• Output Interfaces: USB, RS232
• Response Time: <10 ms
• Safety Output Contacts (based on AWAX26XXL series): 3x NO 8A/250V (redundant) + 1x NC 8A/250V (serial) or 3x NO 6A/250V + 1x NC 6A/250V (redundant serial)
• Operating Temperature: -20°C to +55°C
• Storage Temperature: -25°C to +70°C
• Relative Humidity: 10% to 95% (non-condensing)
• Protection Rating: IP20
• Mounting: DIN rail (based on AWAX26XXL series)
• Dimensions: 22.5 mm compact format (based on AWAX26XXL series)
• Certifications: SIL 3, PLe, UL 508, CSA C22.2, OSHA, NFPA 79
• Warranty: 3 years

Applications

The AWAX SOFT is ideal for safety monitoring in a wide range of industrial machinery, including packaging equipment, printing presses, woodworking machinery, robotics workcells, and automated assembly lines. It is particularly suitable for applications requiring multiple safety functions, such as emergency stops, safety door monitoring, light curtain integration, and two-hand control.

Configuration & Software

The device is configured using a free Windows-based application. The software supports one-click pre-programming for standard safety functions, allowing quick setup without extensive programming knowledge. For complex applications, the device is fully customizable, enabling engineers to implement sophisticated safety logic tailored to specific machine requirements. The software license is provided free of charge by COMITRONIC-BTI.
