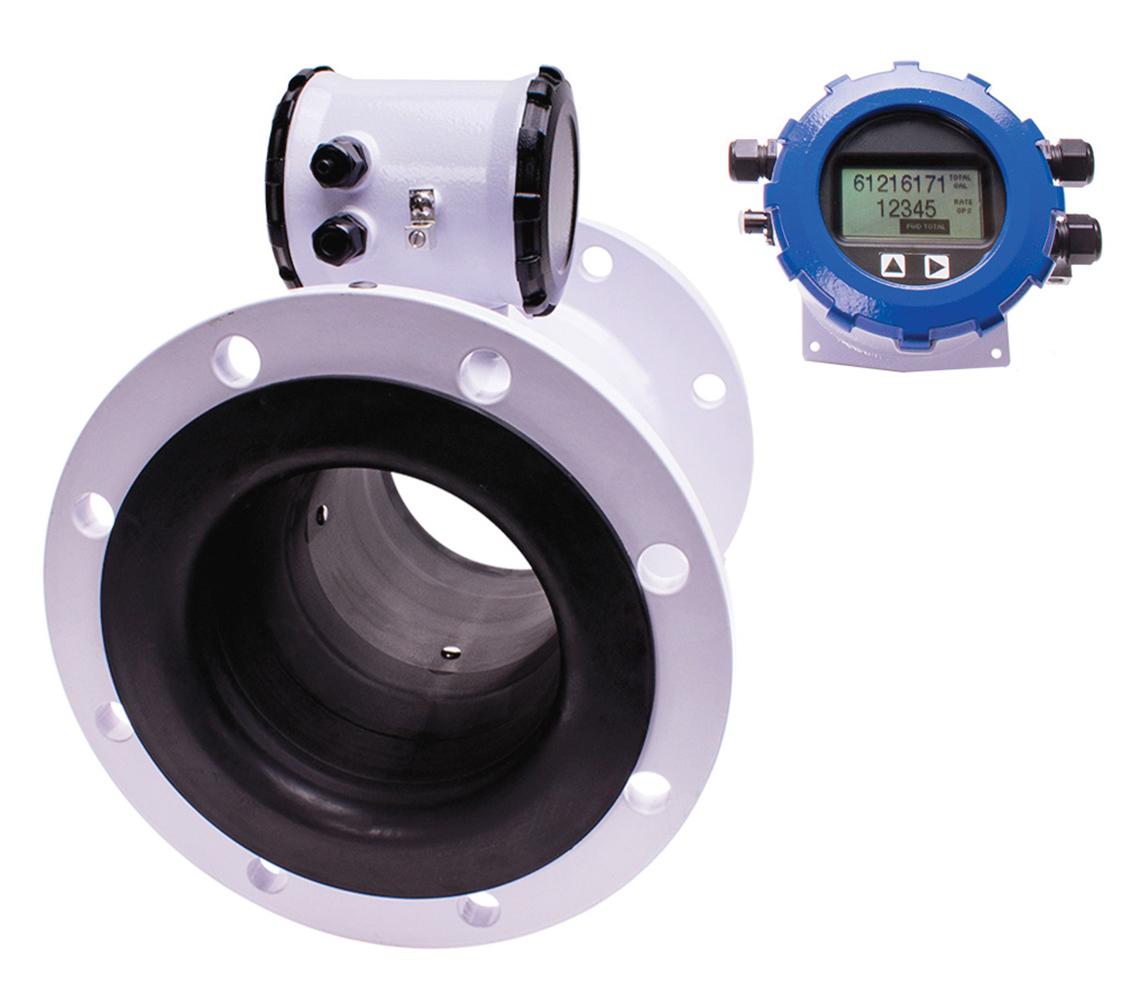

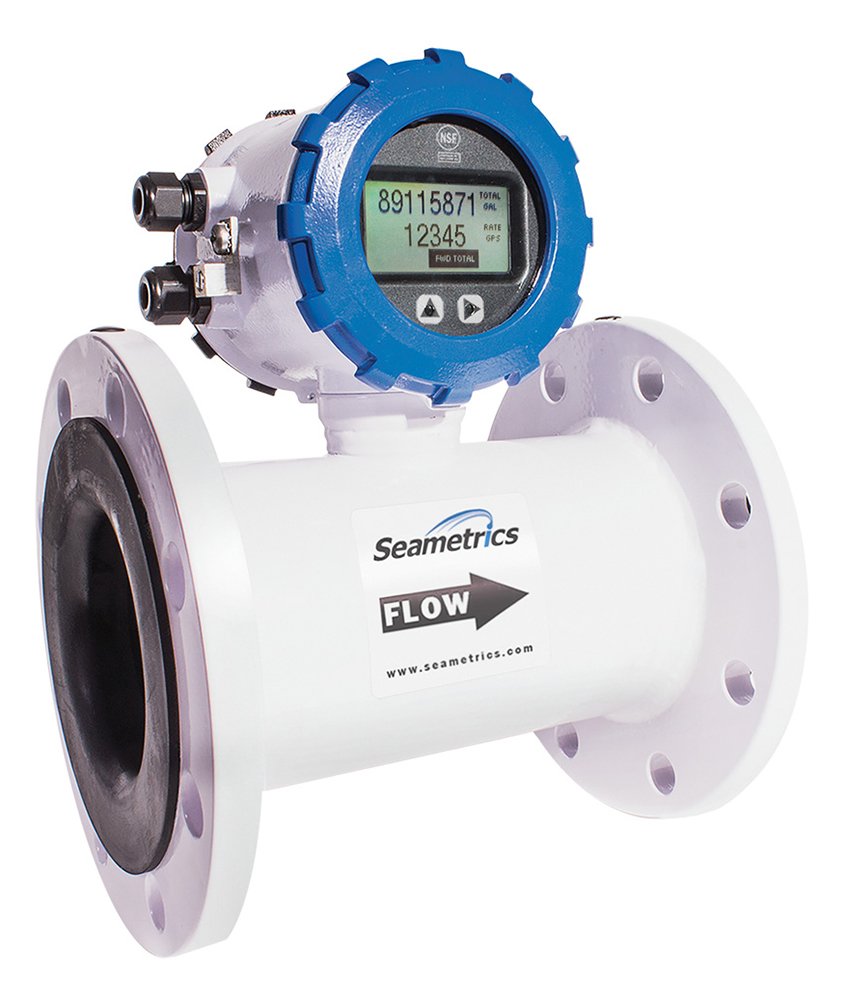

The Seametrics iMAG4700 series is the most economical flanged electromagnetic flowmeter on the market. With electrodes designed to discourage fouling, it is available in 2 to 12 inch pipe sizes for municipal or industrial water, waste and reclaimed water, pump stations, and packaged plant applications. Minimal straight pipe requirements allow use in piping configurations with little space between the meter and an elbow .

iMAG4700 flow meters are rated IP68 for applications where the meter may be operated under water to a depth of at least 10 feet (3 meters) continuously. The display can be meter-mounted or remote; both rate and total indication are standard. Rate/total units and pulse scaling can be set via the front panel touch keypad. Bidirectional flow is standard with forward, reverse, and net flow .

A power/output cable allows outputs for use with Seametrics and other displays/controls for remote reading and telemetry. Pulse output is standard on all models; 4-20 mA passive current loop is standard on the iMAG4700p. Additional 4-20 mA loop, high speed digital, and Modbus protocol outputs are optional on externally powered units .

The meter features a welded steel, epoxy-coated body with polypropylene liner. It is NSF-61 approved and includes a calibration report. Options include built-in data logger .
