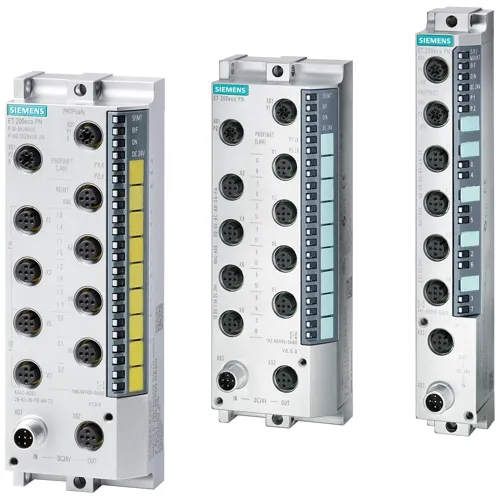

The Siemens 6ES7146-6FF00-0AB0 is an ET 200eco PN compact fail-safe I/O block that combines 8 fail-safe digital inputs and 3 fail-safe digital outputs in a single IP65/IP67 field-mountable housing. Using PROFIsafe communication over PROFINET, it achieves SIL 3 per IEC 61508 and PL e per ISO 13849-1 — the highest safety integrity levels available in discrete automation — without requiring a separate safety controller in the field. The zinc die-cast housing with integrated 2-port PROFINET switch enables cabinet-free installation directly on the machine in line, star, or ring topologies.

What safety functions can this module implement?

With 8 F-DI and 3 F-DQ channels, the module handles typical machine safety functions: emergency stop monitoring, light curtain and safety gate evaluation, two-hand control, safety mat monitoring, and safe limited speed detection. The 3 F-DQ channels at 2 A each can directly drive safety contactors, safety relays, or safe torque-off (STO) inputs on drives. PROFIsafe ensures the safety data is transmitted over the same PROFINET cable as standard I/O data — no separate safety bus wiring is required.

Is this a passive distributor or an active safety I/O module?

Despite sometimes being listed under sensor-actuator distribution categories in catalogs, the 6ES7146-6FF00-0AB0 is an active, microprocessor-based safety I/O module. It processes input signal debouncing, cross-circuit detection, and discrepancy monitoring internally, then exchanges safety process data with the failsafe CPU (F-CPU) over PROFIsafe. It is not a passive M12 splitter or junction box. The 8 M12 sockets are individually assigned fail-safe input channels, not parallel distribution ports.

How does the module achieve SIL 3 with only 3 outputs?

SIL 3 / PL e is achieved through the PROFIsafe protocol layer, not through output channel count. PROFIsafe provides CRC-based data integrity checks, sequence numbering, timeout monitoring, and unique source/destination addressing for each safety telegram. On the output side, the 3 F-DQ channels use internal dual-channel switching with diagnostic feedback. For safety functions requiring dual-channel output without a common cause failure risk — such as a Category 4 emergency stop — two output channels can be assigned to drive redundant contactors.

Frequently Asked Questions

What is the minimum PROFINET update time for safety data?

The watchdog time for PROFIsafe telegrams is configurable based on the PROFINET send cycle. The fail-safe input filter time is typically 0.8 ms for signal change detection. The actual safety response time depends on the F-CPU cycle time plus the PROFINET I/O update rate and the configured PROFIsafe watchdog multiplier.

Can this module be used in hazardous areas?

Yes. The module carries ATEX II 3G (gas, Zone 2) and II 3D (dust, Zone 22) certifications, allowing installation in Class I Division 2 or Zone 2/22 hazardous locations when installed per the applicable installation standards.

Does this module replace a safety relay?

Functionally, it can replace multiple safety relays by handling up to 8 safety inputs and 3 safety outputs in one device. However, a PROFIsafe-capable F-CPU (such as an ET 200SP F-CPU or S7-1500F) is required on the PROFINET network. The module itself does not execute safety logic — it acts as the safe input/output interface while the F-CPU runs the safety program.
