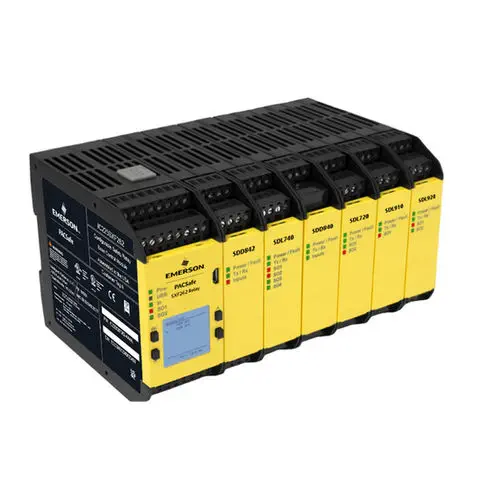

The IC225SDL740 is the highest-density output module in the PACSafe family, providing 4 OSSD pairs that deliver 8 independently controlled solid-state PNP safety outputs. Each OSSD pair can be split into two single-channel outputs, giving engineers the flexibility to configure safety zones independently without adding extra hardware.

When should you choose solid state over relay outputs?

Solid-state OSSD outputs switch 24 VDC PNP loads with no moving parts, offering faster response, longer service life, and immunity to contact wear compared to relay modules. They are ideal for directly driving safety contactors, solenoid valves, and indicator lamps in high-cycle applications. For circuits requiring galvanic isolation or AC switching, consider the relay-output IC225SDL910 in the same series.

How does output splitting work in machine safety design?

Each of the 4 OSSD pairs can operate as a dual-channel safety output or be split into two independent single-channel outputs. This allows a single IC225SDL740 to serve up to 8 separate safety zones — reducing cabinet footprint and simplifying wiring in machines with multiple guarded access points, zone-specific E-Stops, or distributed safety actuators.

What diagnostic features support commissioning and troubleshooting?

LED indicators on the module provide at-a-glance status for each output channel. Through Emerson's PAC Machine Edition, engineers access real-time diagnostics including output state monitoring, overload detection, and pulse-test feedback. The module performs continuous dark testing (brief <1 ms output deactivation) to verify switch-off capability without disturbing the load — a critical feature for maintaining SIL3 integrity without nuisance trips.
