Product Specifications
- Brand
- Emerson Electric Co.
- Part Number
- IC086SFP series
- Type
- Industrial SFP Transceiver Module
- Series
- PACSystems Industrial Ethernet Switches
- Models
- SFP1MM, SFP1SS, SFP2MM, SFP2MMS, SFP2SS, SFP3MM
- Data Rates
- 100 Mbps, 1 Gbps, 10 Gbps (Model-Dependent)
- Fiber Types
- Multi-Mode (850 nm), Single-Mode (1310 nm)
- Connector
- LC Duplex
- Max Distance
- 300 m to 30 km (Model-Dependent)
- Operating Temperature
- -40°C to +85°C
Product Description

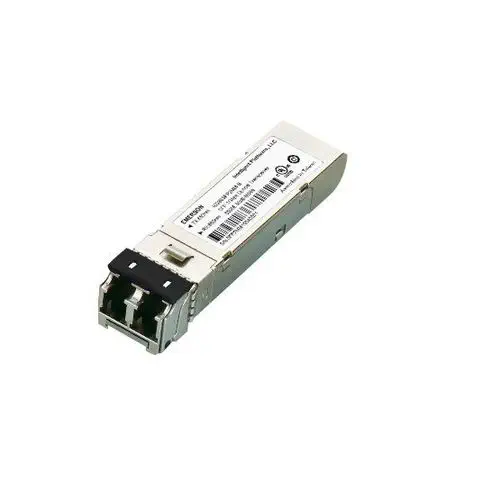

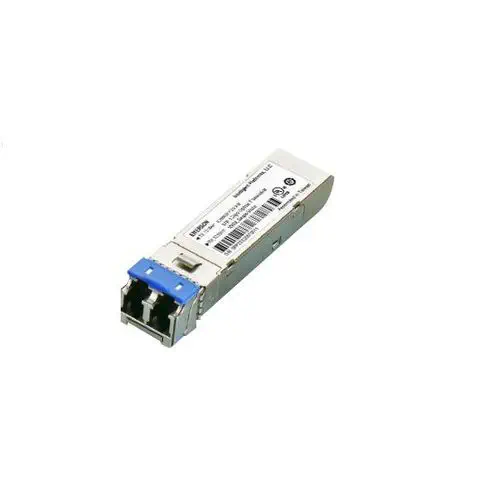

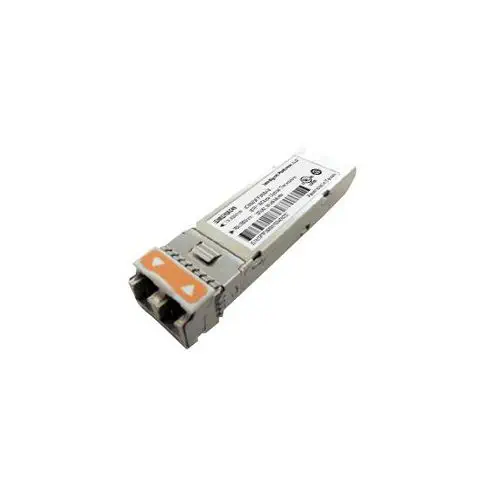

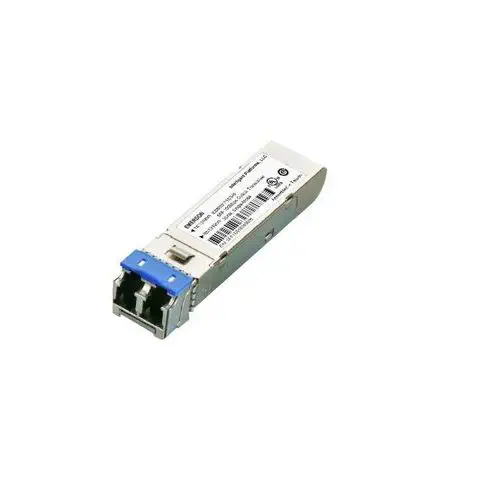

The IC086SFP series is Emerson's family of industrial SFP (Small Form-factor Pluggable) optical transceivers — the hot-swappable interface modules that convert electrical signals from a PACSystems Ethernet switch's SFP cage to optical signals for fiber transmission. Six models cover the full range of industrial networking needs from 100 Mbps control traffic to 10 Gbps backbone links, in both multi-mode and single-mode fiber variants.
Which SFP model fits your application?
| Model | Data Rate | Fiber Type | Max Distance | Typical Use |
|---|---|---|---|---|
| IC086SFP1MM | 100 Mbps | Multi-Mode | 2 km | IED/RTU backhaul within a substation |
| IC086SFP1SS | 100 Mbps | Single-Mode | 30 km | Remote pump station to central control room |
| IC086SFP2MM | 1 Gbps | Multi-Mode | 550 m | High-speed machine vision or camera ring |
| IC086SFP2MMS | 1 Gbps | Multi/Single-Mode | 10 km | Flexible spares inventory — covers both fiber types |
| IC086SFP2SS | 1 Gbps | Single-Mode | 10 km | Inter-building gigabit backbone |
| IC086SFP3MM | 10 Gbps | Multi-Mode | 300 m | Data center or control room aggregation |
Why industrial-temperature SFP matters
Commercial SFP modules are typically rated 0°C to +70°C. Emerson's IC086SFP transceivers are rated -40°C to +85°C across the entire family — the same temperature envelope as the PACSystems switches they plug into. In an unheated enclosure at a pipeline valve station or a rooftop MCC, a commercial SFP will fault long before the switch itself reaches its temperature limit. The extended-range SFP ensures the optical link is not the weak point in the thermal chain.
