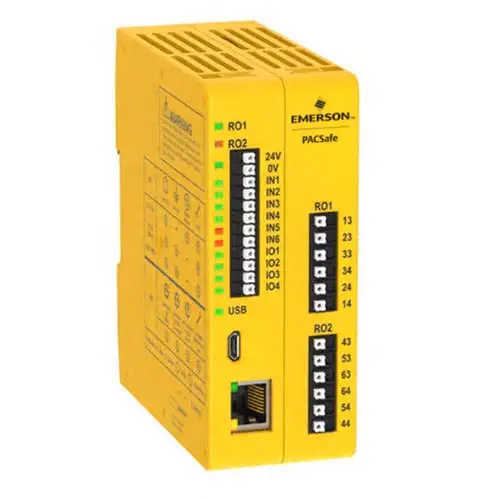

The Emerson PACSafe IC225SSF262 is the standalone safety controller variant with an integrated LCD display — positioned between the entry-level IC225SSE262 (no LCD) and the expandable IC225SXF262 (LCD + expansion). It combines 26 safe inputs, 8 convertible inputs, and 4 OSSD solid-state safety outputs in a single 110 × 45 × 129 mm IP20 housing, with the LCD providing local diagnostic visibility without a programming PC. SIL 3 / PL e certified and PROFINET/Modbus TCP-equipped, it suits machine safety applications where on-controller status feedback matters but expansion beyond a single controller is not required.

What does the LCD display show?

The integrated LCD provides real-time system status, I/O channel state, diagnostic messages, and fault codes directly on the controller face. For maintenance technicians troubleshooting a stopped machine without access to the programming software, the LCD enables rapid identification of which safety input triggered a shutdown — an E-stop, a light curtain interruption, or a gate switch open — without connecting a laptop or navigating the HMI. This capability is the sole differentiator between the SSF262 and SSE262; all other specifications are identical.

When should I choose the SSF262 over the SXF262?

Both the SSF262 and SXF262 include an integrated LCD. The choice hinges on expandability. The SXF262's backplane supports up to eight additional I/O modules (input, solid-state output, or relay output), making it suitable for multi-zone safety architectures or machines likely to add guarded access points in the future. The SSF262 is a fixed-I/O controller — choose it when the safety I/O count is known, the machine design is stable, and the LCD's diagnostic convenience is valued. Both share the same programming environment and PROFINET/Modbus TCP communication stack, so an SSF262-based design can be migrated to an SXF262 later if requirements grow.
