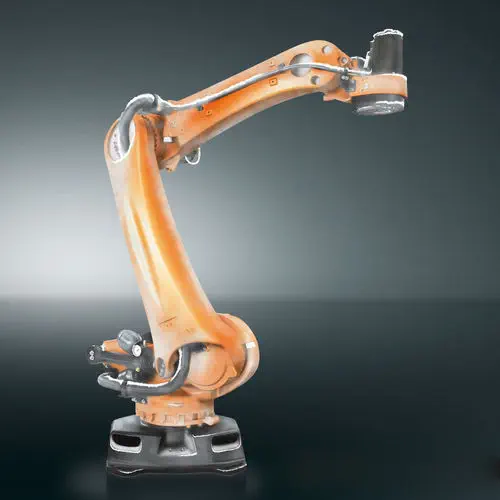

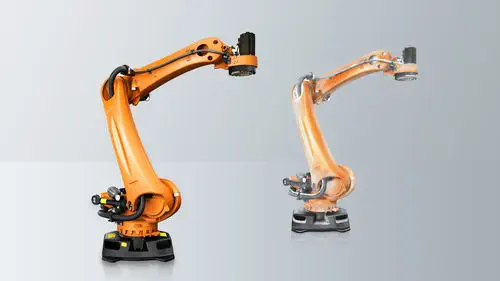

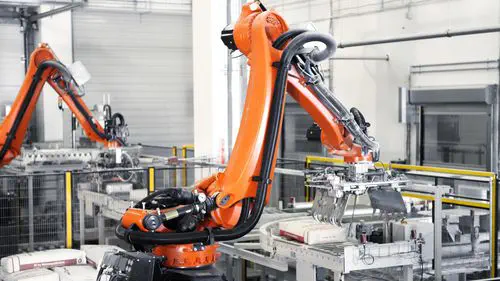

KUKA positions the KR QUANTEC PA family as the fastest, strongest and most precise palletizing robots on the market, and the engineering backs the claim: five axes dedicated to palletizing, 120 to 240 kg of payload across the model ladder, one 3195 mm arm length covering every variant, and stack heights above 2500 mm from a narrow base frame that leaves room for the cell around it.

Why a hollow-shaft wrist on a palletizer?

Because gripper supply lines are what break at height. The 60 mm hollow shaft feeds energy and media through the wrist itself, protecting them from the sweep of a full 240 kg layer change and shrinking the interference contour enough that dense multi-pallet layouts fit inside compact cells. Constant throughput at short cycles and full payload - the property that decides annual tonnage - comes from lightweight, high-stiffness arm components.

Standard cell or special environment?

The family answers both with variants rather than custom builds: KR 120, 140, 180 and 240 R3200 PA in standard form, PA-HO food-grade versions, -2 two-hand variants, and the Arctic design that stacks frozen goods at minus 30 degrees Celsius with no protective suit - a food-sector palletizer that works inside the cold store instead of beside it. Against six-axis QUANTEC generalists, the PA family trades the fifth elbow for palletizing kinematics, lower mass and faster cycles, at repeatability of plus/minus 0.06 mm on the reference KR 120 R3200 PA.
