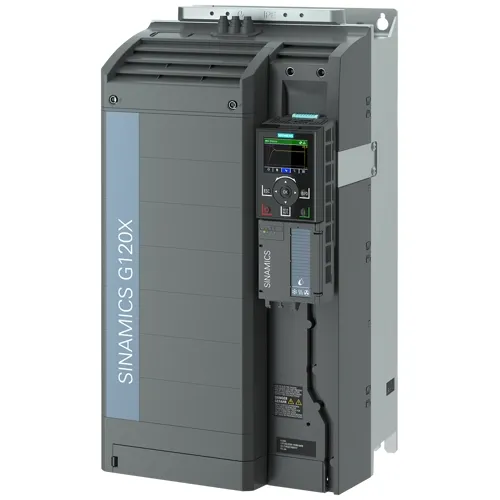

The 6SL3230-3YE38-1AF0 is the F-suffix 45 kW G120X in the FSE frame — 3C3 coated with an integrated C2 EMC filter and no operator panel. Electrically identical to the 1AP0 at 122 A LO — the F and P designations distinguish catalog ordering channels for the same 45 kW drive hardware. Systems integrators who procure via the F-suffix path receive identical electrical performance with the same 3C3 environmental protection and C2 EMC compliance.

The 3C3 conformal coating protects against condensation, humidity, and airborne chemical agents — critical for water treatment plant pump galleries, cooling tower fan cabinets, and process industry mechanical rooms. The integrated C2 EMC filter handles conducted emissions at the drive terminals, eliminating external filter engineering. Without a permanently mounted panel, commissioning and diagnostics run through PROFINET or TIA Portal — the panel builder avoids the cost of a mounted HMI on every drive. For applications requiring local operator access, the 1AB0 variant adds the IOP-2 panel. FSE frame: 275 × 551 × 239 mm.
