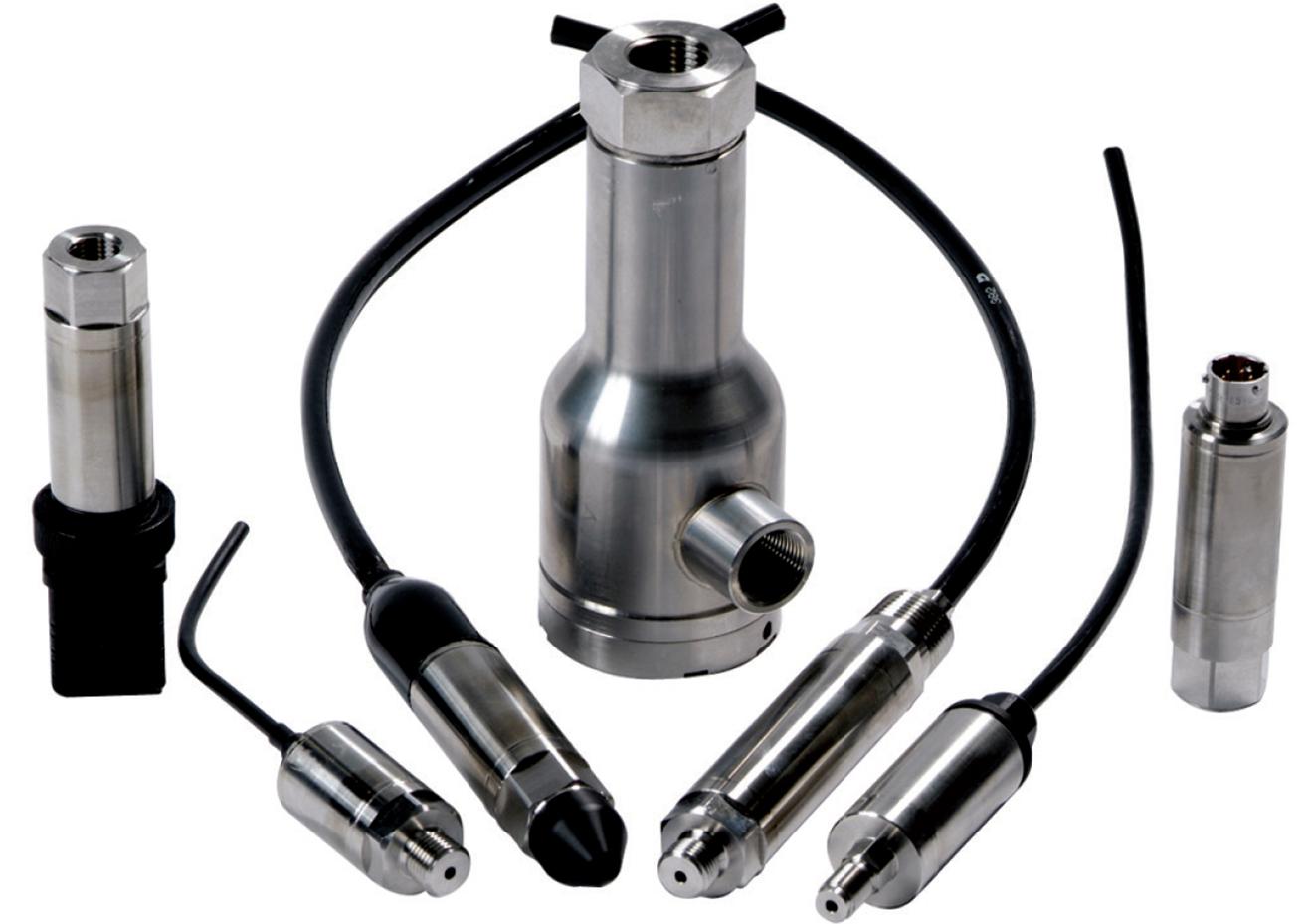

The Druck UNIK 5000 is a configurable pressure sensing platform built on proprietary silicon technology and analog circuitry, delivering best-in-class stability, low power consumption, and fast frequency response. Modular design and lean manufacturing let you specify the exact sensor configuration for your application.

UNIK 5000 sensors are available with pressure ranges from 1 to 10,000psi. There are three grades of performance (Industrial, Improved and Premium), offering accuracies from 0.2% to 0.04%. A wide range of pressure connectors, electrical connectors, and electrical outputs are available to suit most environments with operating temperature ranges from -67 to 257°F°C. All units feature high overpressure capability, are constructed from high grade stainless steel and are compliant with global and regional certification bodies (pending).

High levels of performance have been achieved without the use of digital electronics making UNIK5000 sensors particularly well suited to sensitive applications, such as those requiring low power, low noise pulse power and fast response.

Applications: Depth and Level, Industry and process, Oil and Gas, Aerospace, Power Generation, Marine. Custom pressure ranges and cable lengths are available upon request.
