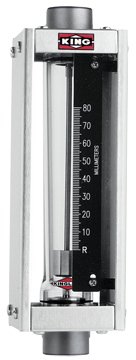

Rotameter - Glass Tube, Stainless Steel Case | King 7460 Series

1 / 5

Product Specifications

Manufacturer: King Instrument
Product Number: 7460 Series
Category: Rotameters
Max Flow (Water): 25 GPM
Max Flow (Air): 14 SCFM
Accuracy: ±5% full scale
Max Pressure: 200 psig
Scale Length: 127 mm (5 inch)
Temperature Rating: 250°F gas / 200°F liquid
Turndown Ratio: 10:1
Documents: Product Manual, Product Specs

Product Description

The King Instrument 7460 series rotameter and glass tube meter offers economical 304 stainless steel case construction with vertical connections. Internal components are made from 316L stainless steel or Hastelloy C-276. The King Instruments 7460 series rotameter features fitting material available in 316L stainless steel or PVC while O-rings are available in Viton, Buna N, EPR, and Kalrez.

The King Instrument 7460 series rotameter and glass tube meter features a max temperature of 250°F (121°C) for gases and 200°F (93°C) for liquids. The maximum pressure limit is 200 psig.

Maximum flow rate is 25 GPM (water) or 14 SCFM (air) with ±5% of full scale flow accuracy and 1% repeatability. It features vertical NPT inlet/outlet fittings in 316L stainless steel or PVC. Scales can be produced in any volumetric unit.
