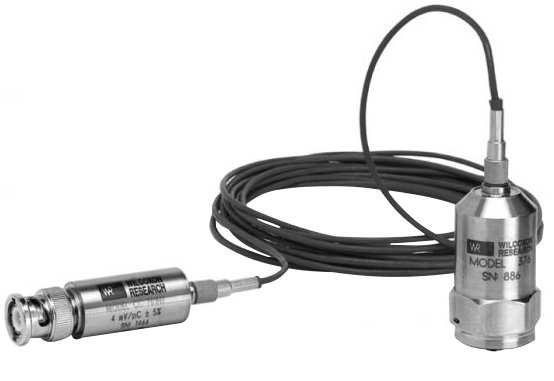

The Wilcoxon Sensing Technologies 376 accelerometer and amplifier system is designed for long-term, reliable use. It is constructed with 316L stainless steel, is ground isolated, and has a welded seal. It features an operating temperature up to 260°C and charge output, and is ground isolated. The 376 accelerometer has a 10-32 connector and a 1/4-28 tapped hole for mounting. The 376/CC701HT system uses a BNC jack mating connector and R1-1-J3 standard cabling.

The 376 accelerometer can be purchased separately or as part of the 376/CC701HT accelerometer and amplifier system for high temperature environments.

Features

• Dynamic vibration (IEPE) sensor output
• Sensitivity:
  • 376/CC701HT system: 100mV/g
  • 376 sensor: 25 pC/g
• Sensitivity tolerance:
  • 376/CC701HT system: ±10%
  • 376 sensor: ±5%
• Frequency response:
  • 376/CC701HT system:
    • ±10%: 2 to 10,000Hz
    • ±3 dB: 1 to 15,000Hz
  • 376 sensor:
    • ±5%: 6,000Hz
    • ±10%: 8,000Hz
    • ±3 dB: 12,000Hz
• 30kHz resonance frequency
• 500g peak vibration limit
• 5,000g peak shock limit
• Sensing element design:
  • 376/CC701HT system: PZT, compression
  • 376 sensor: PZT ceramic / compression
• 1/4-28 tapped hole mounting
