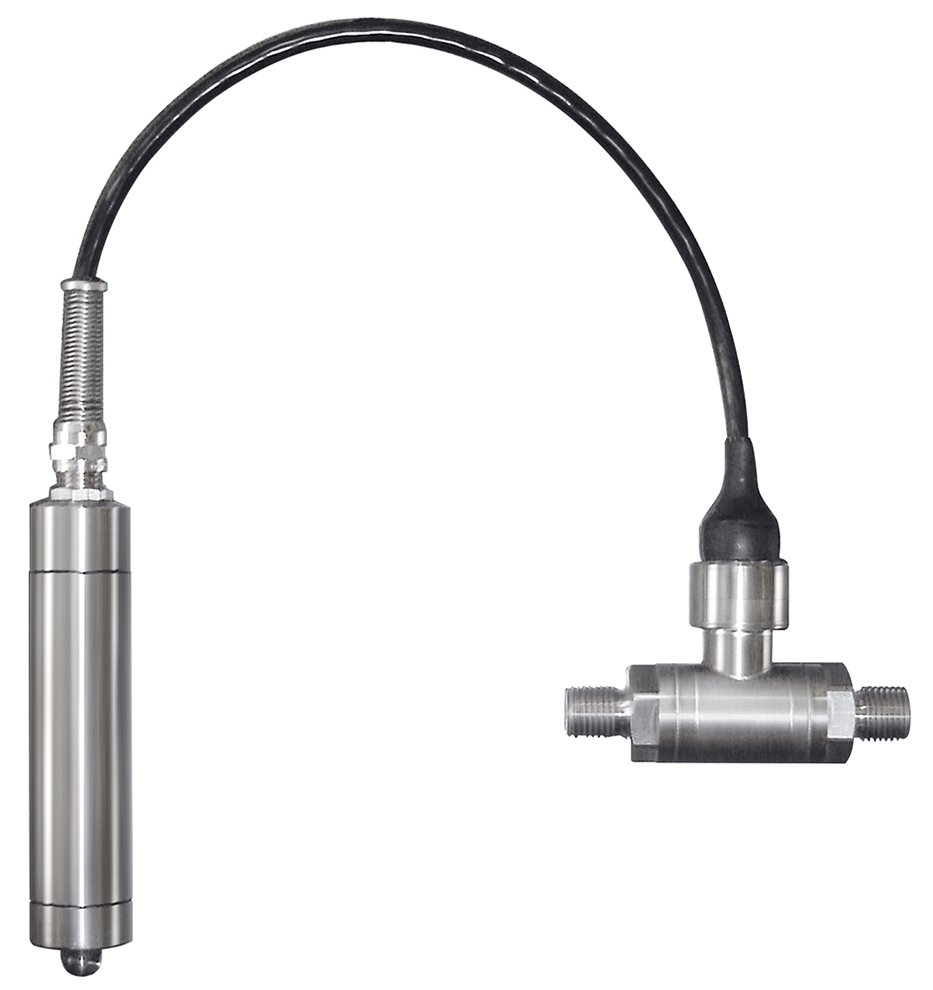

The PRTemp1000D is a rugged pressure recorder to accurately monitor and record pressure and temperature at user programmable reading intervals. The rugged stainless steel design allows for the device to be placed in harsh environments, which makes it well suited for use with air conditioning systems, chilled water, hot water, air, gas, oil and steam pressure systems.

The internal temperature sensor provides accurate temperature measurements without the need for a separate temperature recorder. The logger can be started to take measurements as often as every two seconds, up to one reading every twelve hours. It will store up to 16,383 readings in its non-volatile memory.

The PRTemp1000D uses a rugged stainless steel pressure strain gauge to accurately measure the pressure. The device comes standard with a 1/4" NPT differential fitting. Available pressure ranges include 30, 100, 300, or 500 PSID.

Applications

• Pneumatics
• Process control systems
• Gas compressors
• Natural gas production
• Lubrication systems
• Chemical processing
• Pulp and paper processing
• Medical instrumentation
• Environmental studies
• Waste water treatment
• HVAC
• Oil & gas industries
