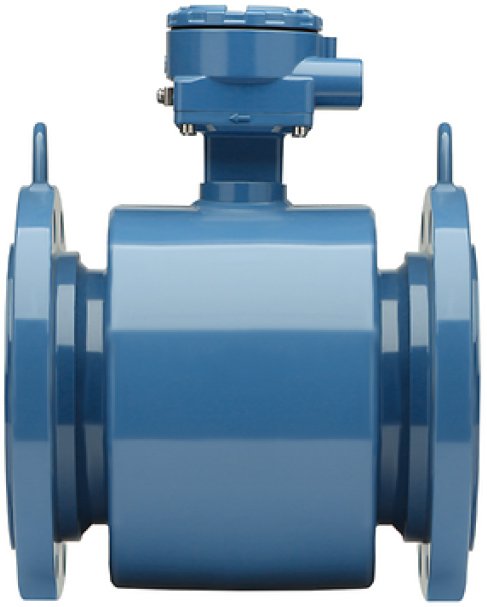

The Rosemount MS Magnetic Flow Meter Sensor is a robust solution for difficult-to-measure applications such as sand, high solids content fluids, long pulp fibers, or installations that generate excessive process noise. Designed with these challenging applications in mind, the MS Slurry Sensor overcomes common flow signal challenges to deliver a stable yet responsive flow output .

When paired with the 8782 Slurry Transmitter, the system provides optimum performance in high noise applications. The increased signal strengths allow for more precise flow measurement and reduce process variability even in hard-to-measure flows. A dual calibration option helps reduce sensor inventory requirements .

The sensor features an all-welded housing for reliability in harsh environments, and a removable and replaceable terminal block enables field repairs without process shutdown. Optional lining protectors guard against installation damage and leading-edge wear. Optional secondary containment compartments capture any potential process fluid leakage .

Available in sizes from 3 to 36 inches with a wide range of liner materials (PTFE, PFA+, polyurethane, neoprene, Linatex natural rubber, Adiprene) and electrode materials (316L SST, nickel alloy, platinum, tantalum, titanium) in standard, bullet, or flat configurations. The obstructionless design features no moving parts, making it ideal for metering conductive slurries .
