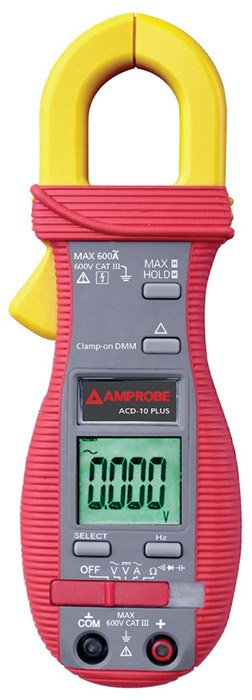

The Amprobe ACD-10 PLUS is a 600A AC clamp meter designed with thinner jaws than standard clamp meters—only 10mm (0.4") thick—allowing easy access to tight measurement areas while still accommodating conductors up to 26mm (1.02") in diameter.

The meter combines the convenience of an AC current clamp with essential digital multimeter functions. It measures AC and DC voltage to 600V, AC current to 600A, resistance to 40MΩ, capacitance to 3000µF, and frequency (via jaws from 40-400Hz or test leads from 10Hz to 100kHz). An inrush current function captures starting currents for motor troubleshooting.

The 3-3/4 digit (4000 count) LCD display provides clear readings, with auto-ranging for quick measurement selection. Additional features include a continuity buzzer (tone between 10Ω and 120Ω), data hold, max reading function, relative zero mode, and auto power off to conserve battery life. The rubber over-molded case absorbs shock and provides durability in field use.

The ACD-10 PLUS is CAT III 600V safety rated and operates from 0°C to 40°C. It includes test leads, installed CR2032 battery, soft carrying pouch, and user manual. Suitable for residential, commercial, and light industrial electrical troubleshooting.
