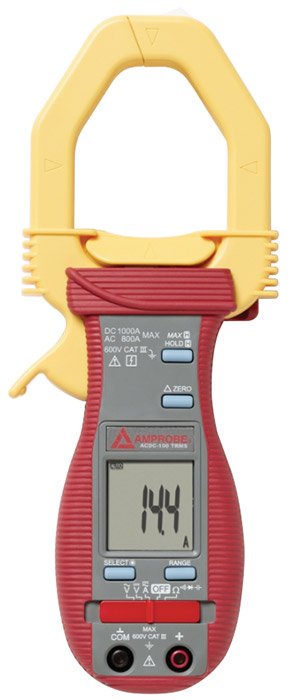

Amprobe ACDC-100 Clamp Multimeter | 1000A AC/DC Industrial Clamp-On Tester

1 / 5

Product Specifications

Manufacturer: Amprobe

Product Number: ACDC-100

Product Type: AC/DC Clamp-On Multimeter

Core Measuring Ranges: AC/DC Current up to 1000A; AC/DC Voltage up to 600V; Resistance up to 40MΩ; Capacitance up to 3000µF

Display: 3-3/4 digit, 4000 count LCD Display

Clamp Jaw Capacity: Accommodates conductors up to 50mm (2") in diameter

Core Features: Continuity Beeper, Relative Zero Mode, Auto Power Off, Data Hold, Max Capture Function, Diode Test

Housing: Rubber Over-Molded Case with Built-In Probe Storage & Test Probe Holder

Standard Accessories: Carrying Case, Test Leads, Batteries, Product Manual

Documents: Product Manual , Product Specs

Product Description

The Amprobe ACDC-100 1000A AC/DC clamp-on multimeter measures AC/DC current to 1000 A, AC/DC voltage to 600 volts, resistance to 40 MΩ and capacitance up to 3000 µF. The Amprobe ACDC-100 clamp-on multimeter also features a continuity beeper, relative zero mode, auto power off and data hold functions.

The Amprobe ACDC-100 1000 A AC/DC clamp-on multimeter has a 3-3/4 digit, 4000 count LCD display. It accommodates conductors up to 50 mm (2") in diameter and is equipped with a convenient test probe holder. The multimeter is housed in a rubber over-molded case with built-in probe storage.

The Amprobe ACDC-100 1000 A AC/DC clamp-on multimeter ships complete with:

Carrying case
Test leads
Batteries
Product manual

Amprobe ACDC-100 1000 A AC/DC Clamp-on Multimeter Specifications

Feature	Range	Accuracy
DC Voltage
	400.0 mV	0.3% + 3d
	4.000 V, 40.00 V, 400.0 V	0.5% + 3d
	600 V	1.0% + 4d
NMRR:	>50 dB @ 50/60 Hz
CMRR:	>120 dB @ DC, 50/60 Hz, Rs=1kΩ
Input impedance:	10 MΩ, 30 pF nominal (1000 MΩ for 400.0 mV range)
AC Voltage
50 Hz ~ 500 Hz	400.0 mV	4.0% + 4d
50 Hz ~ 60 Hz	4.000 V, 40.00 V, 400.0 V	1.0% + 4d
60 Hz ~ 500 Hz	4.000 V, 40.00 V, 400.0 V	1.5% + 4d
50 Hz ~ 500 Hz	600 V	2.0% + 4d
CMRR:	>60 dB @ DC to 60 Hz, Rs=1kΩ
Input impedance:	10 MΩ, 30 pF nominal
Resistance
	400.0 Ω	0.8% + 6d
	4.000 kΩ, 40.00 kΩ, 400.0 kΩ	0.6% + 4d
	4.000 MΩ	1.0% + 4d
	40.00 MΩ	2.0% + 4d
Open circuit voltage:	0.4 VDC typical
Audible continuity tester
Open circuit voltage:	0.4 VDC typical / 400.0 Ω	1.5% + 6d
Audible threshold:		between 10 Ω and 120 Ω
Diode Tester
	Open circuit less than 1.6 V DC
	Voltage test current (Typical) 0.4 mA
Capacitance
	500.0 nF, 5.000 µF, 50.00 µF 500.0 µF, 3000 µF¹	3.5% + 6d^{2, 3}
1) Additional 50.00 nF range accuracy is not specified
2) Accuracies with film capacitor or better
3) Specified with battery voltage above 2.8 V (approximately half full battery). Accuracy decreases gradually to 12% at low battery warning voltage of approximately 2.4 V
DC Current (Clamp-on)
400.0 A	0.0 A ~ 400.0 A	1.5% + 4d^{1, 2}
1000.0 A	400 A ~ 800 A	1.5% + 4d^{1, 2}
	800 A ~ 900 A	2.0% + 4d^{1, 2}
	900 A ~ 1000 A	5.0% + 30d^{1, 2}
1) Induced error from adjacent current-carrying conductor: less than 0.01 A/A
2) Zero mode must be applied to zero the unit before measurement to ensure accuracy. This is particularly important below 20 A
AC Current (Clamp-on)
400.0 A
	15 Hz ~ 40 Hz	2.0% + 5d ¹
	40 Hz ~ 200 Hz	1.5% + 5d ¹
	200 Hz ~ 400 Hz @ less than 50 A ²	1.5% + 5d ¹
	400 Hz ~ 1 kHz @ less than 50 A ²	2.0% + 5d ¹
800 A
	15 Hz ~ 40 Hz @ 400 A ~ 600 A	2.0% + 5d ¹
	40 Hz ~ 100 Hz @ 400 A ~ 600 A	1.5% + 4d ¹
	15 Hz ~ 60 Hz @ 600 A ~ 800 A	5.0% + 30d ¹
1) Induced error from adjacent current-carrying conductor: less than 0.01 A/A
2) Accuracy is specified at less than 50 A in this frequency bandwidth due to limited calibrator output capability for testing
